AudisonPreview

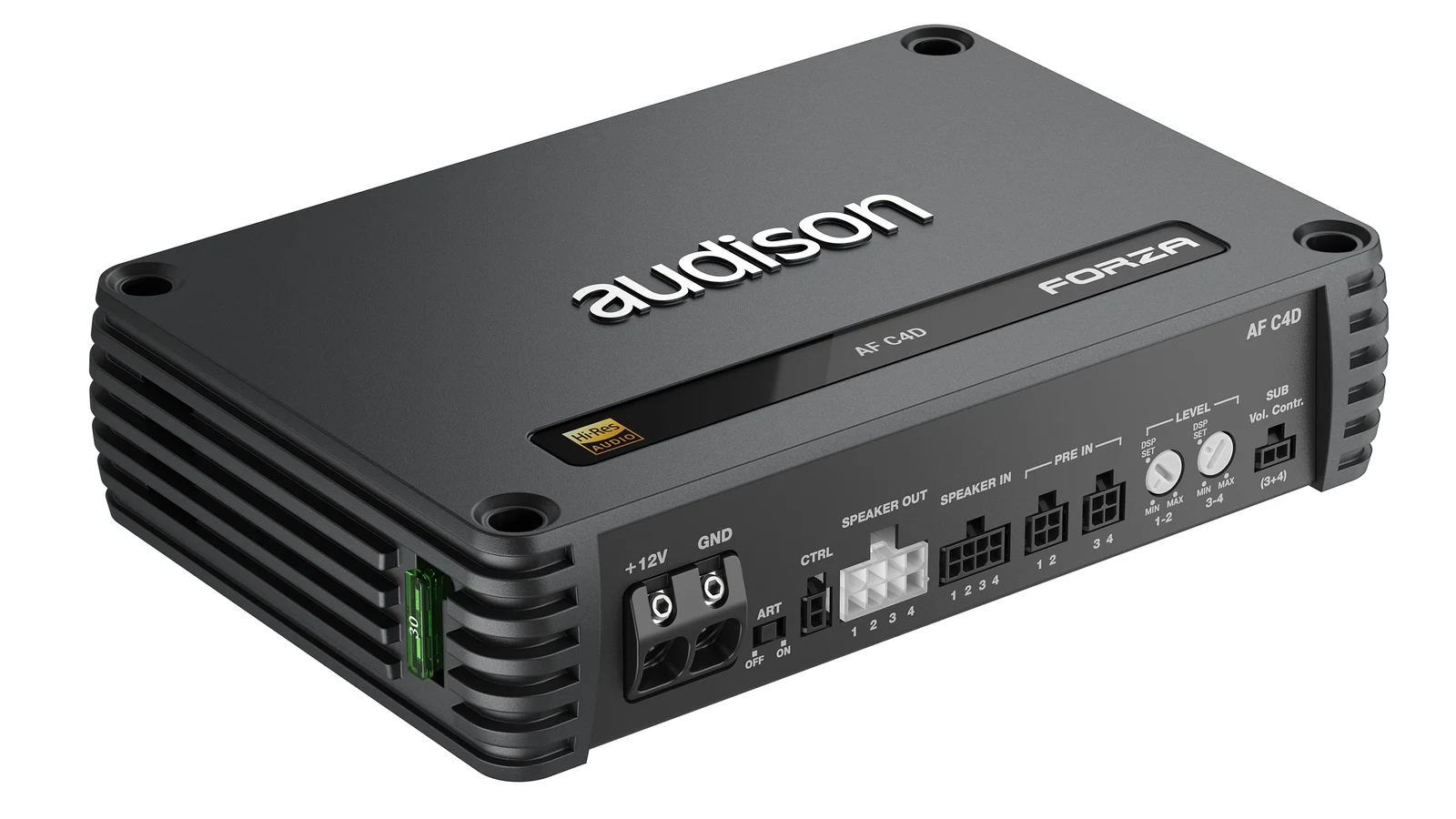

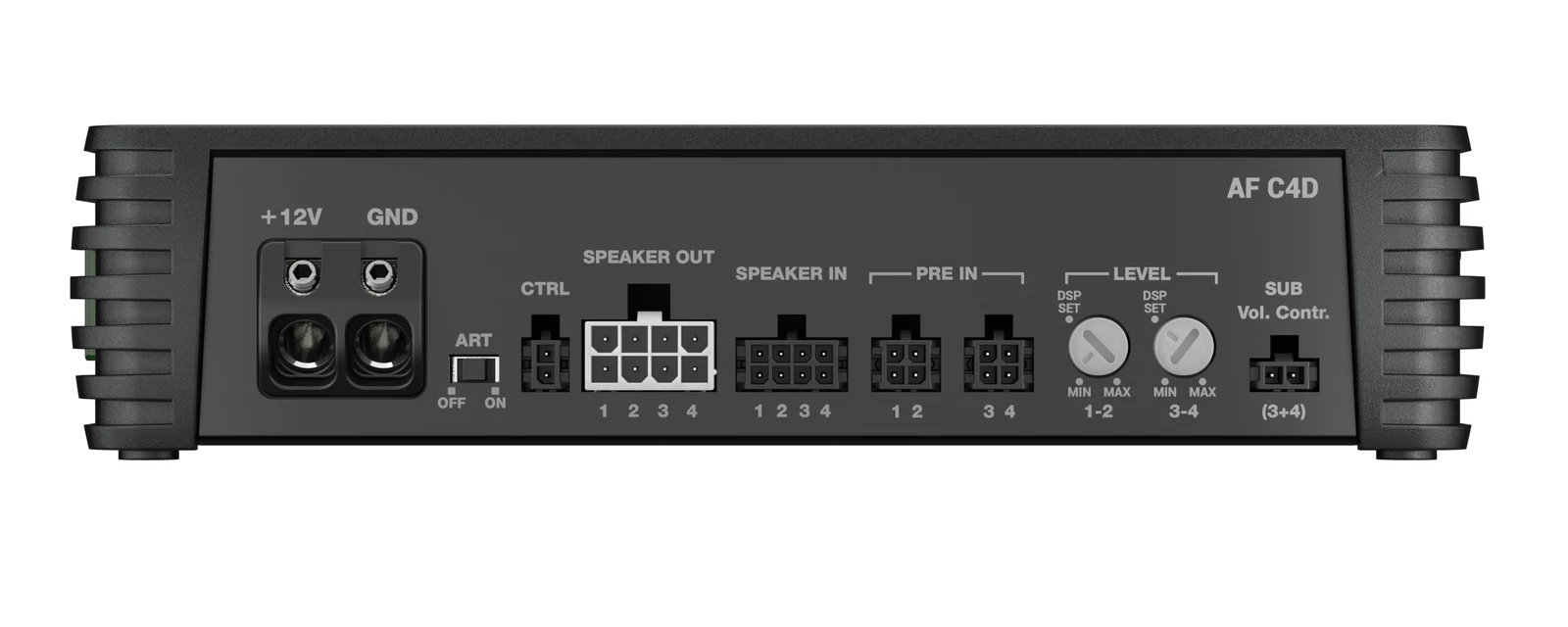

4-Channel D-class Fully Bridgeable Amplifier
Coming soon
4-Channel D-class Fully Bridgeable Amplifier. Made for car audio setups. At a glance: 4 channels.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Audison
- Channels
- 4
- Class
- D-Class
- Efficiency
- 84%
- Hi Level Input
- Yes
- Low Level Input
- Yes
- Digital Input
- No
- Power supply voltage / fuse
- 11 ÷ 15 VDC
- Operating power supply voltage
- 6.5 ÷ 17.5 VDC
- Idling current
- 0.6 A
- Idling current when off
- 0.004 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power
- 25 A
- Remote OUT
- 6.5 ÷15 VDC (150 mA)
- Remote IN
- 4 ÷15 VDC (1 mA)
- ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)
- 1.5 VDC
