Audison

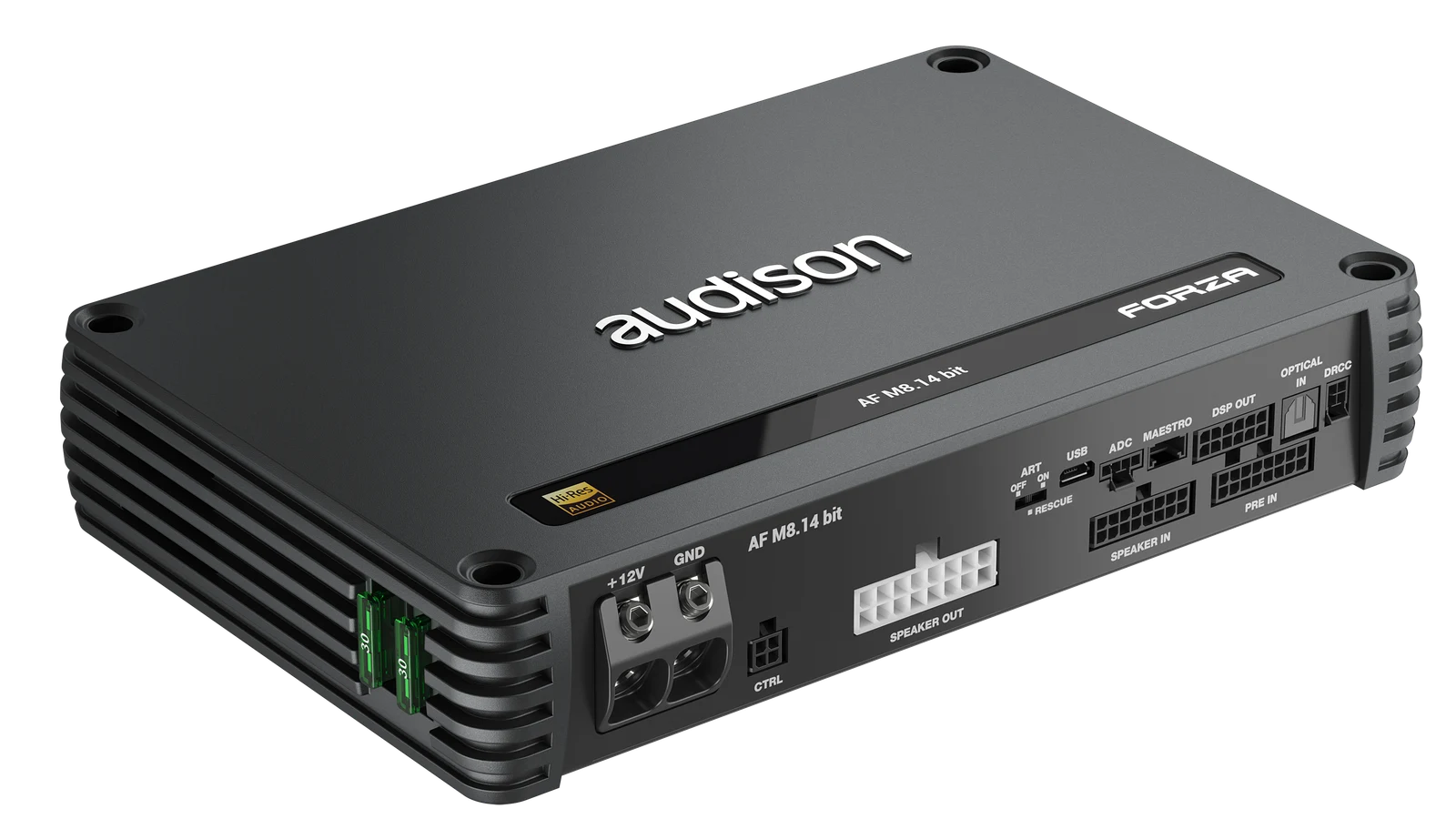

AF M8.14 BIT Digital Signal Processor
Part # AF M8.14 BIT
Coming soon
Digital Signal Processor. Made for car audio setups. At a glance: 240 x 47 x 156 / 9.44 x 1.85 x 6.14 · 8 channels.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Audison
- Channels
- 8
- Class
- D-Class
- Power supply voltage / fuse
- 6.5 ÷ 15 VDC / 2 x 30A
- Idling current
- 1.5 A
- Standby Current Draw
- 1 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power
- 55 A
- Remote IN
- 4 ÷15 VDC (1 mA)
- Remote OUT
- 6.5 ÷15 VDC (150 mA)
- ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers
- 1.5 VDC
- Efficiency Rated Power
- 82%
- Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power
- 0.05%
- Bandwidth @ -1.5 dB
- 10 Hz ÷ 42 kHz
- Damping factor @ 1 kHz, 4Ω, 2 VRMS
- 100
- S/N ratio (A weighted @ 1 V Input) Master Input
- 98.5 dBA
