Cerwin-Vega

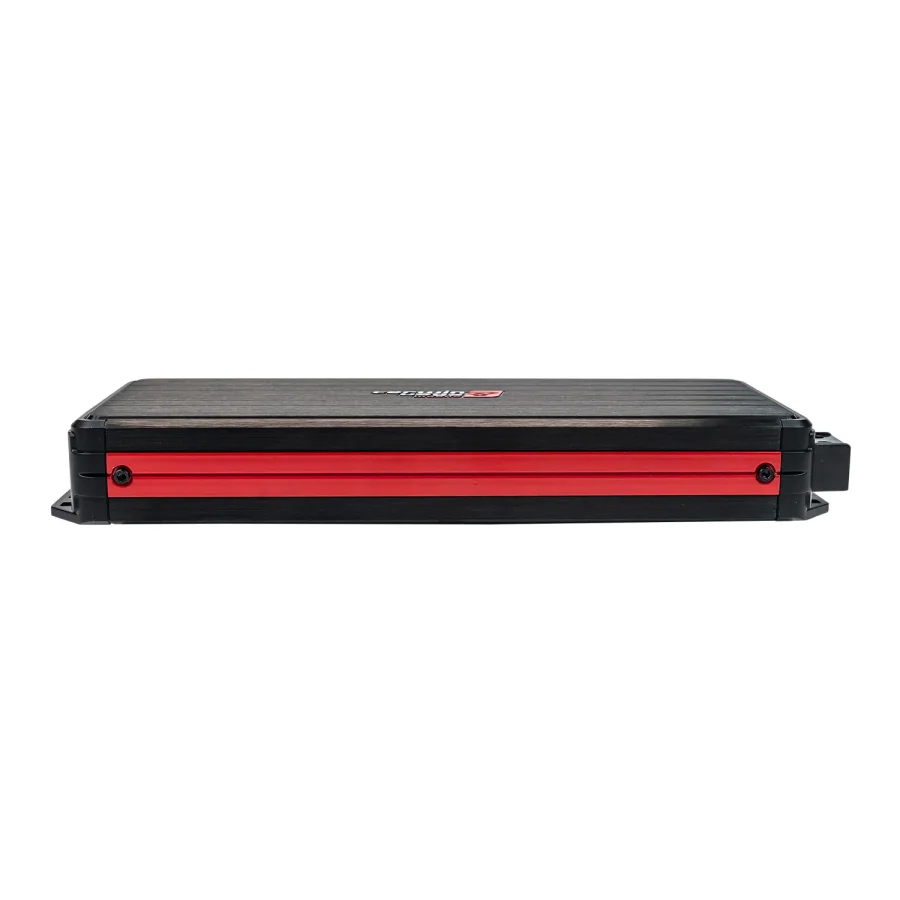

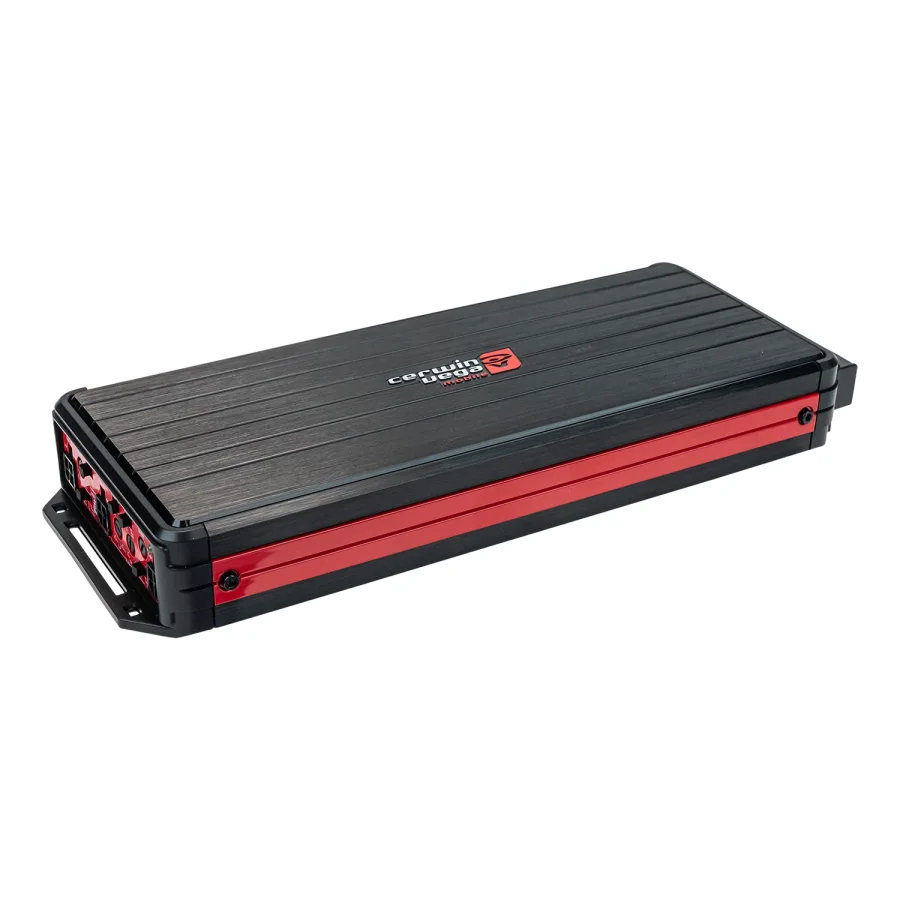

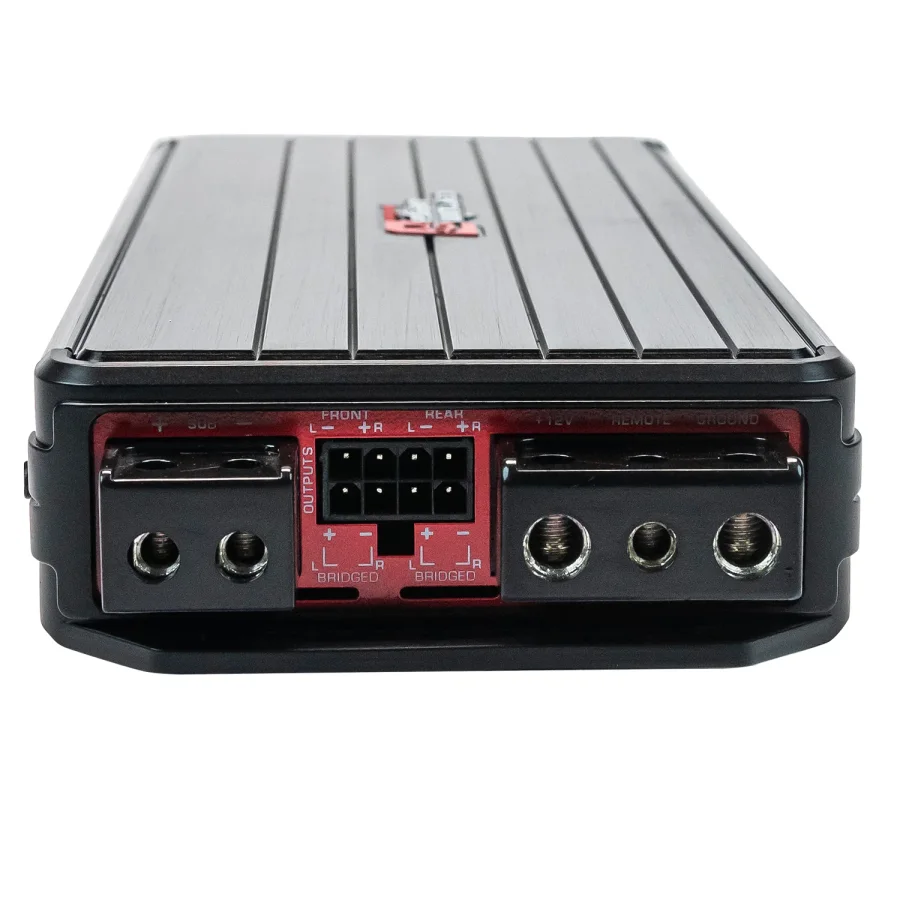

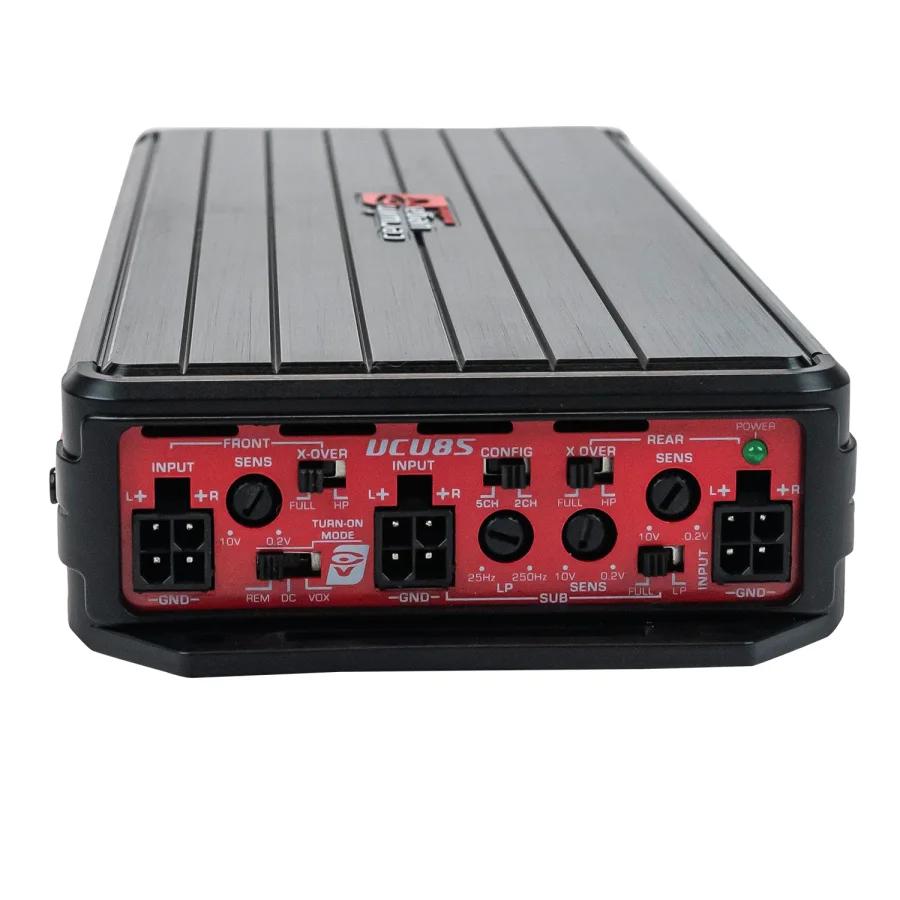

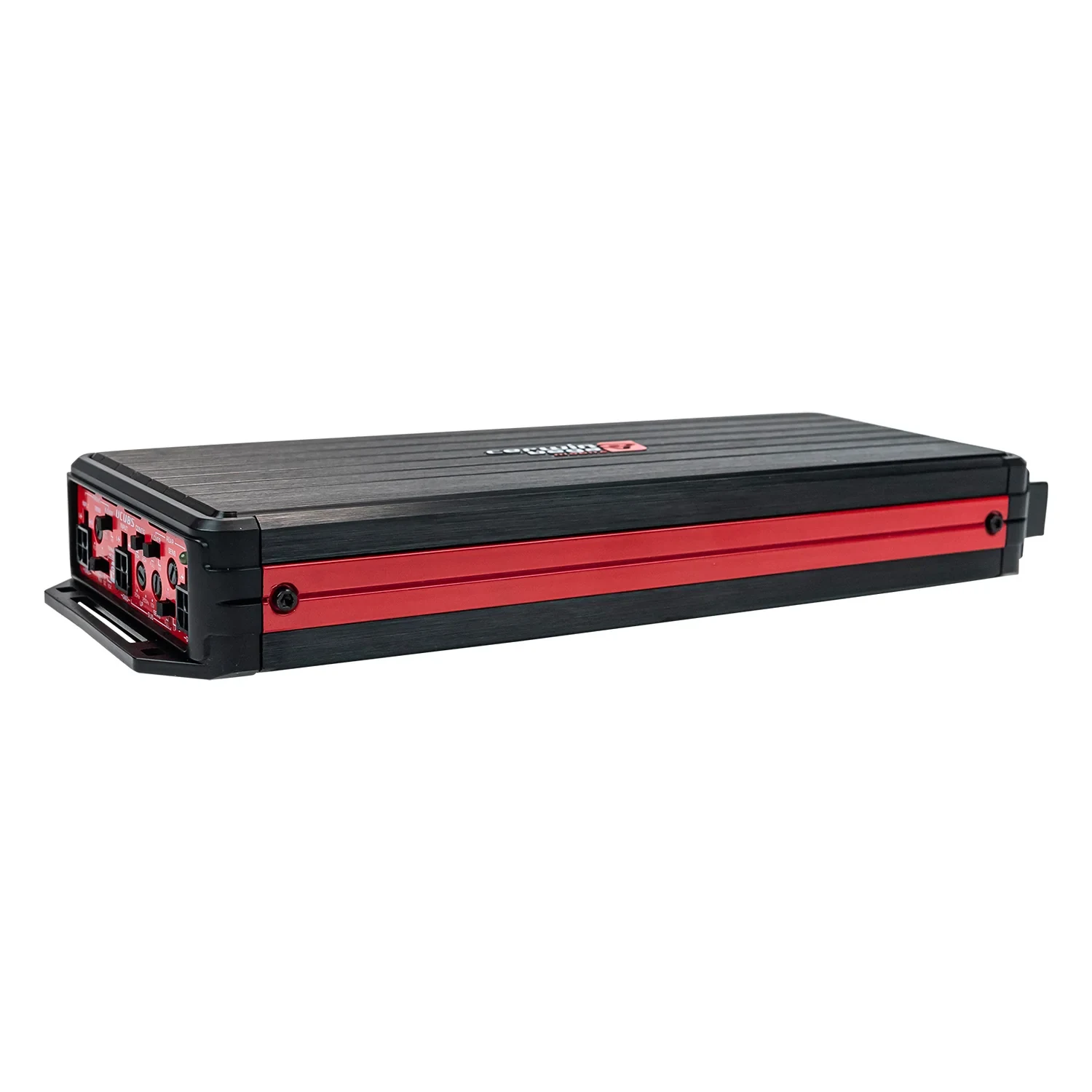

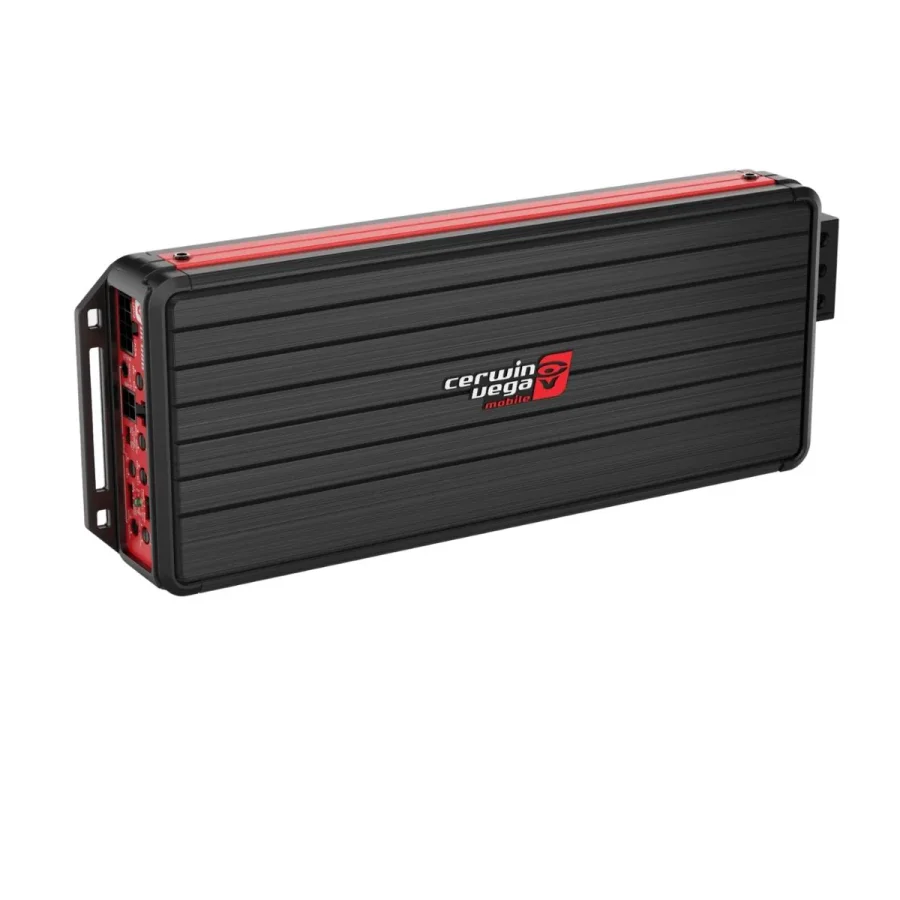

VCU85 VEGA Series 5-Channel Full Range Class-D Amplifier
Part # VCU85
Coming soon
VEGA Series 5-Channel Full Range Class-D Amplifier. Made for car audio setups. At a glance: 10 - 33000 Hz.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Cerwin-Vega
- FREQUENCY RESPONSE (HZ)
- 40HZ - 400HZ
- RMS POWER PER CHANNEL 4Ω 80W X 4 &
- 200W x 1
- RMS POWER PER CHANNEL 2Ω 150W X 4 &
- 350W x 1
- RMS POWER PER 2 CHANNELS BRIDGED 4Ω 300W X 2 &
- 200W x 1
- Power Supply
- Full PWM
- Power Supply Threshold
- 10.0V-17.0V (DC)
- Idle Current
- (0.7A)
- THD 4 (1KHz @4Ω)
- 0.05%
- S/N Ratio (A weighted @1W)
- -85 dBA
- S/N Ratio (A weighted @FP)
- -101.1 dBA
- Low Input Level
- 200mV-10.0V
- High Input Level
- 200mV-10.0V
- Output Impedance
- 0.018Ω
- Damping Factor (50Hz @ 4Ω)
- >250
