Cerwin-Vega

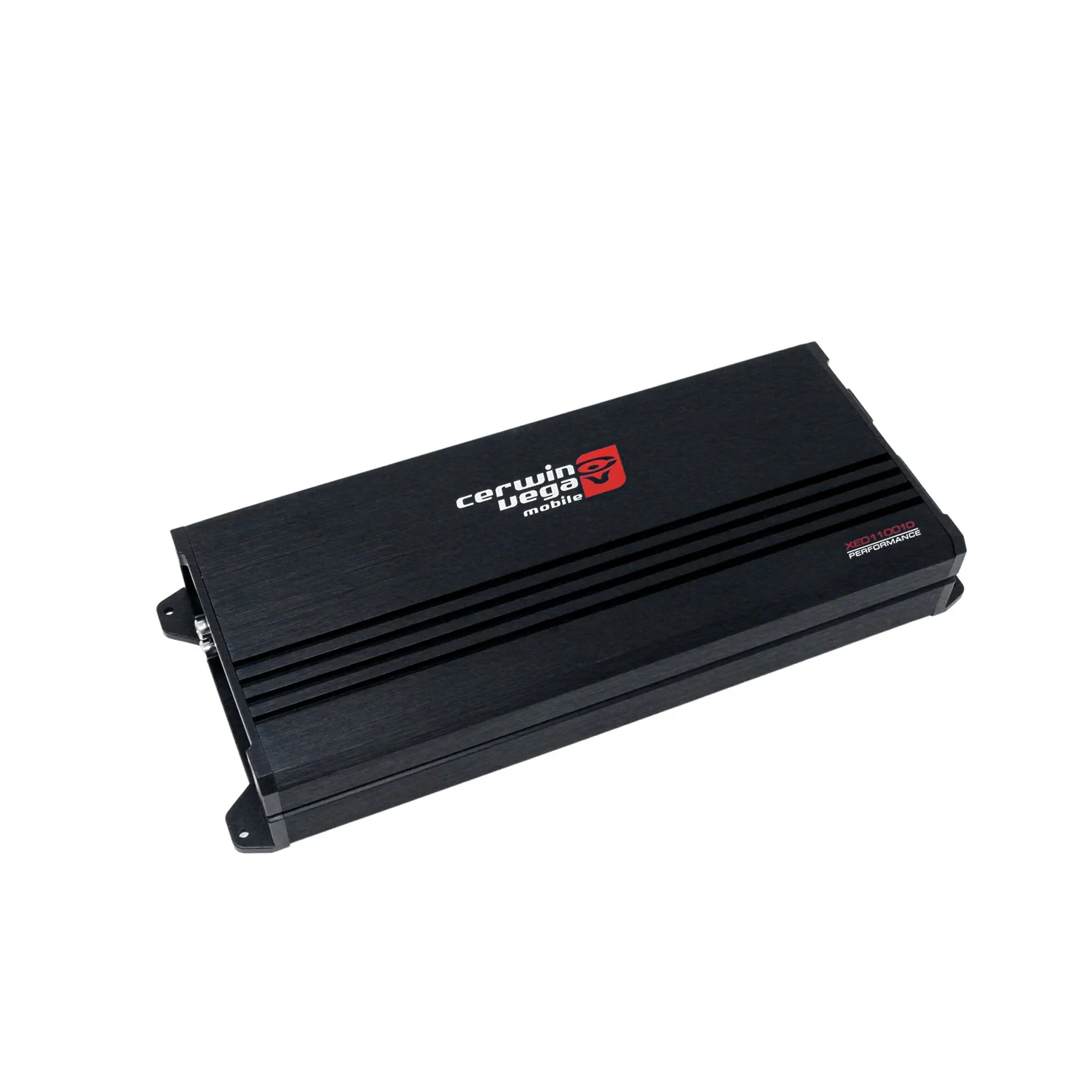

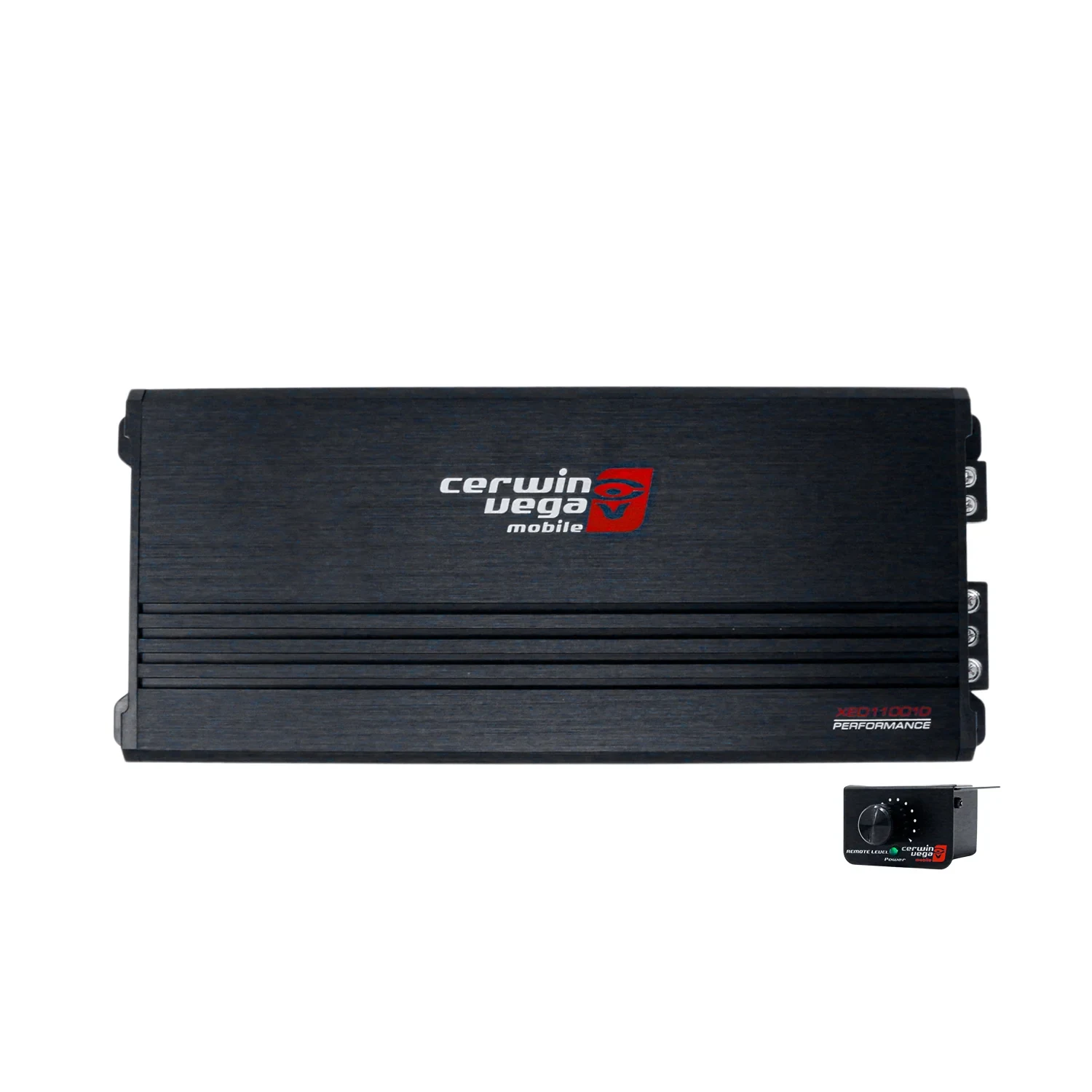

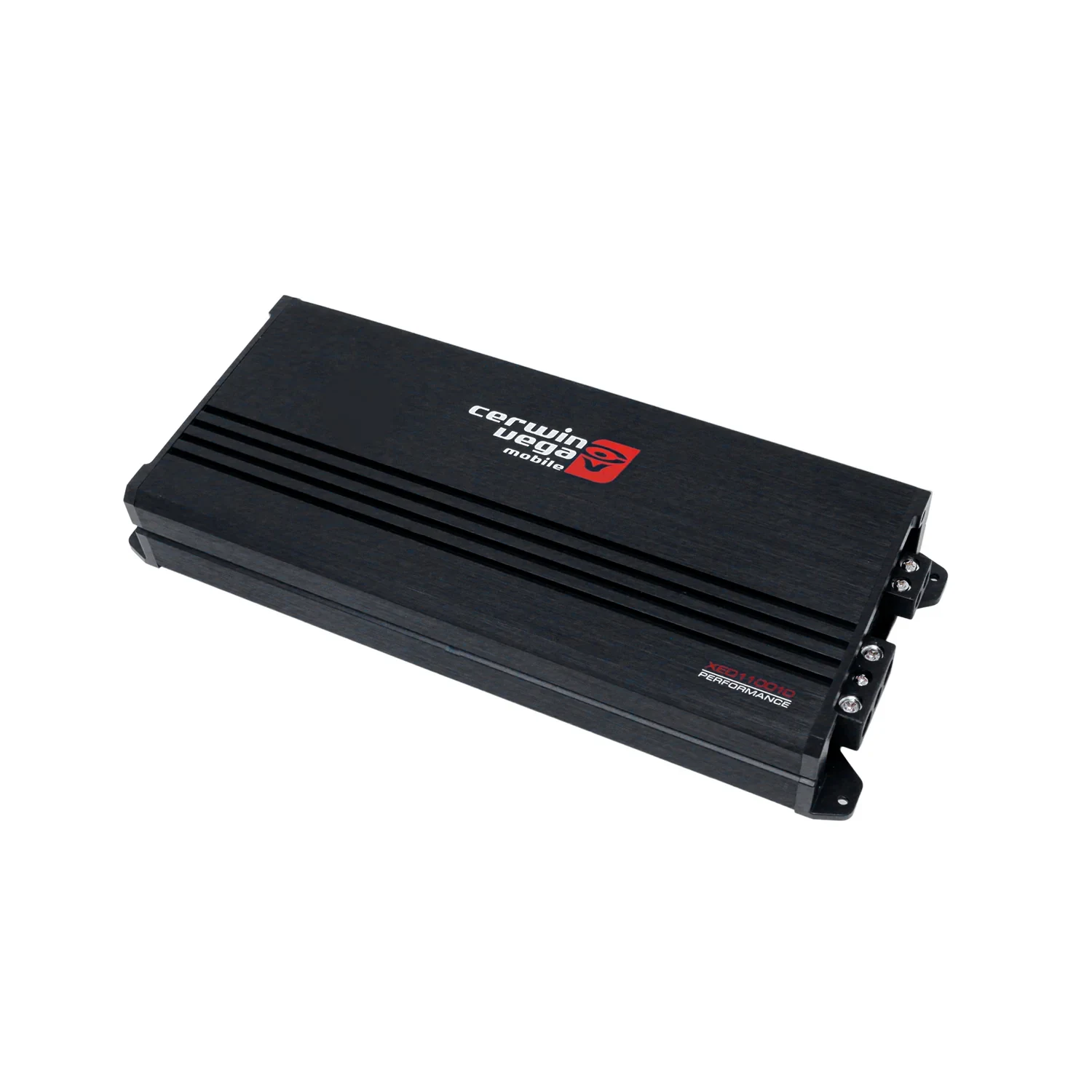

XED11001D XED Series 1-Channel Mono Block Class-D Amplifier
Part # XED11001D
Coming soon
XED Series 1-Channel Mono Block Class-D Amplifier. Made for car audio setups.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Cerwin-Vega
- FREQUENCY RESPONSE (HZ)
- 35HZ - 350HZ
- RMS POWER PER CHANNEL 4Ω
- 650W x 1
- RMS POWER PER CHANNEL 2Ω
- 1100W x 1
- Power Supply
- Full PWM
- Power Supply Threshold
- 10.0V-16.0V (DC)
- Idle Current
- (0.7A)
- THD 4 (100Hz @4Ω)
- <0.1%
- S/N Ratio (A weighted @1W)
- -85dBA
- S/N Ratio (A weighted @FP)
- -101.1dBA
- Low Input Level
- 250mV-6V
- High Input Level
- 1.1V~>20.0V
- Output Impedance
- 2Ω
- Damping Factor (50Hz @ 4Ω)
- >70
- Bandwidth (-3dB)
- 10Hz-250Hz
