Cerwin-Vega

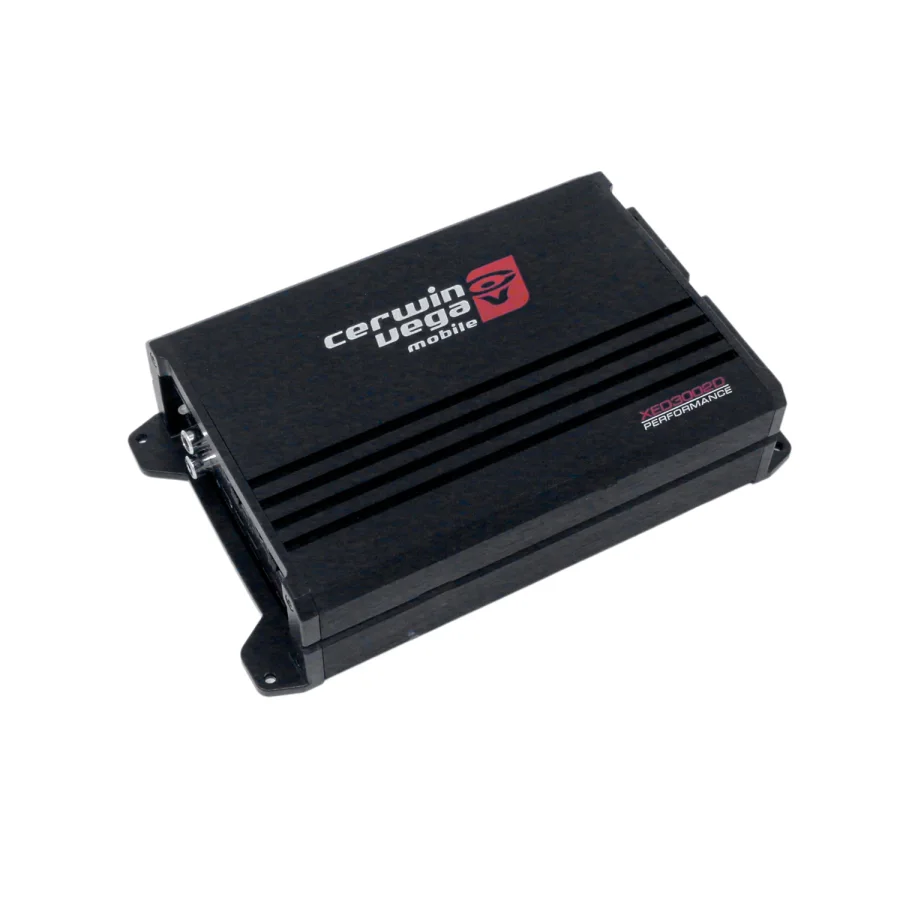

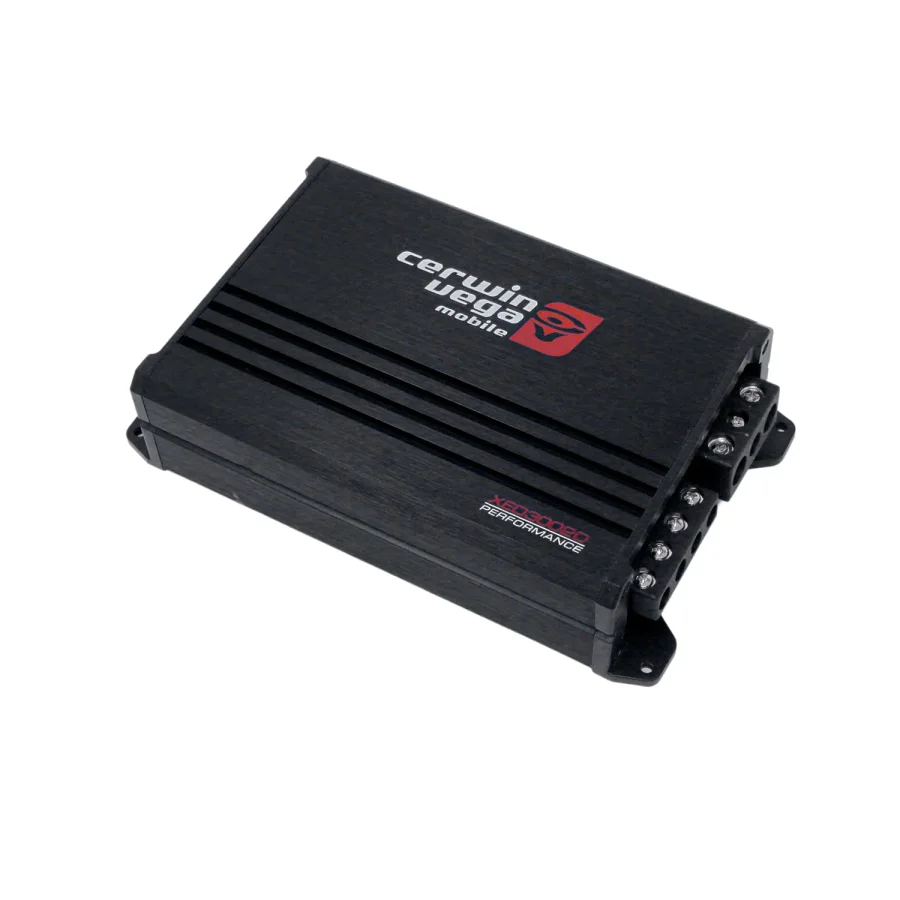

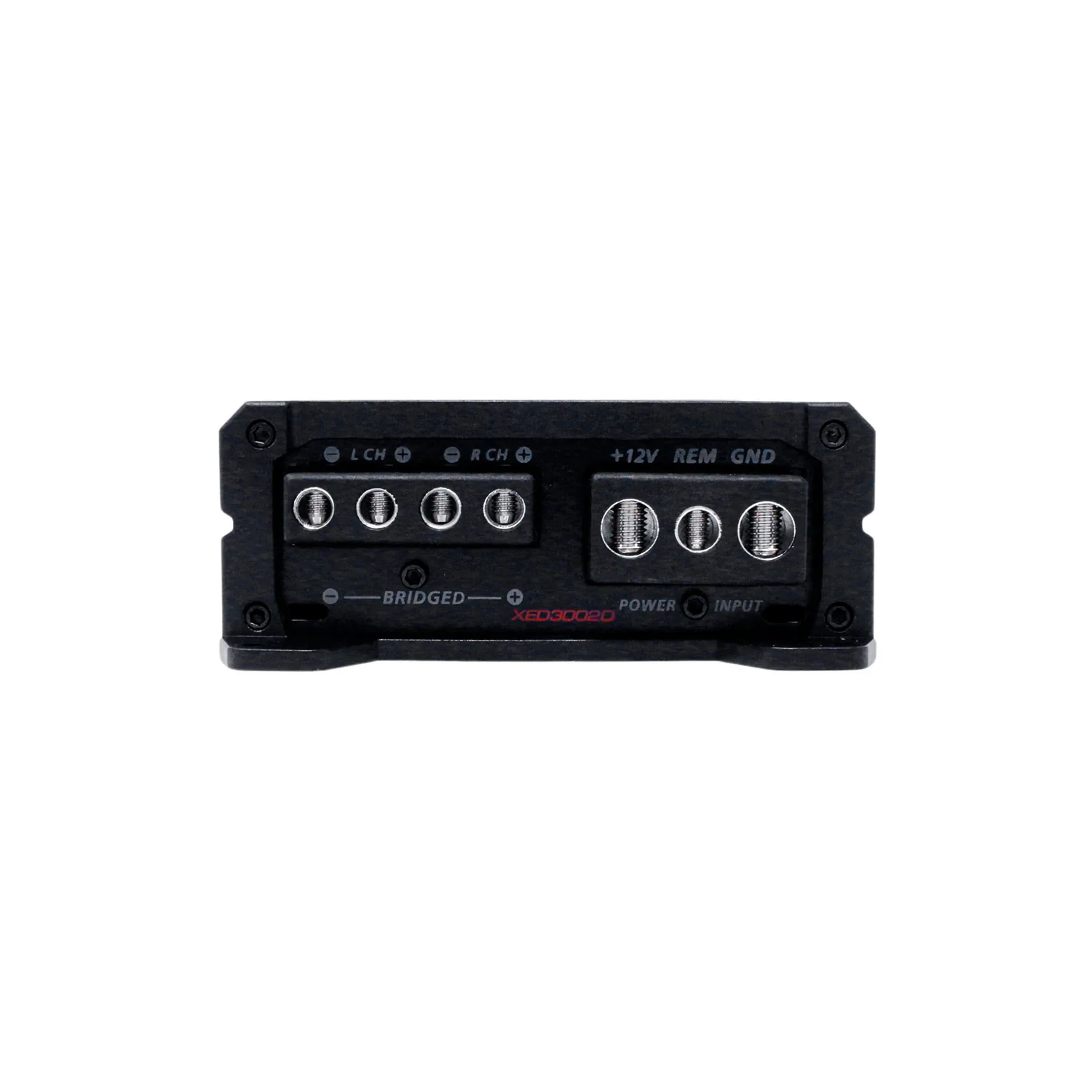

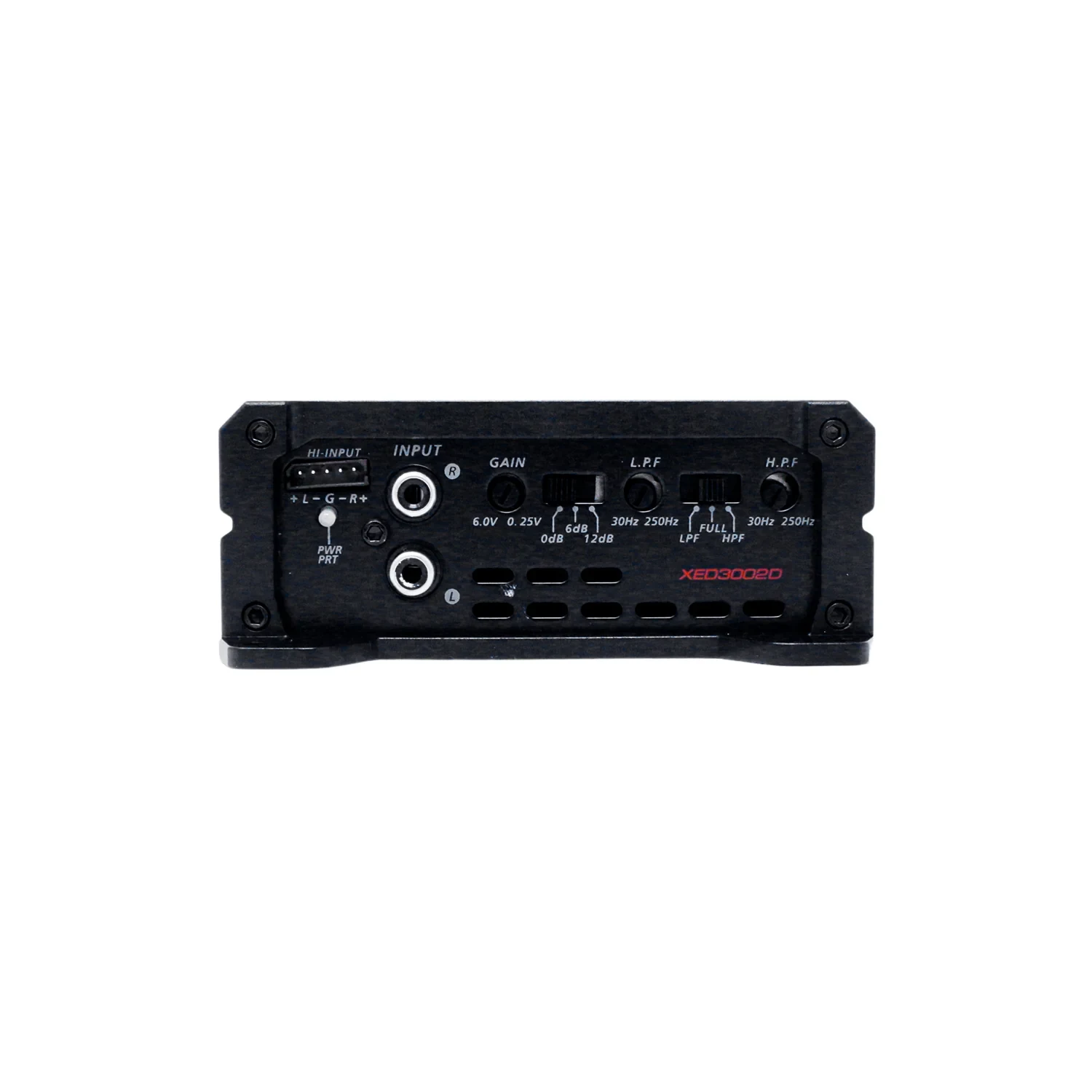

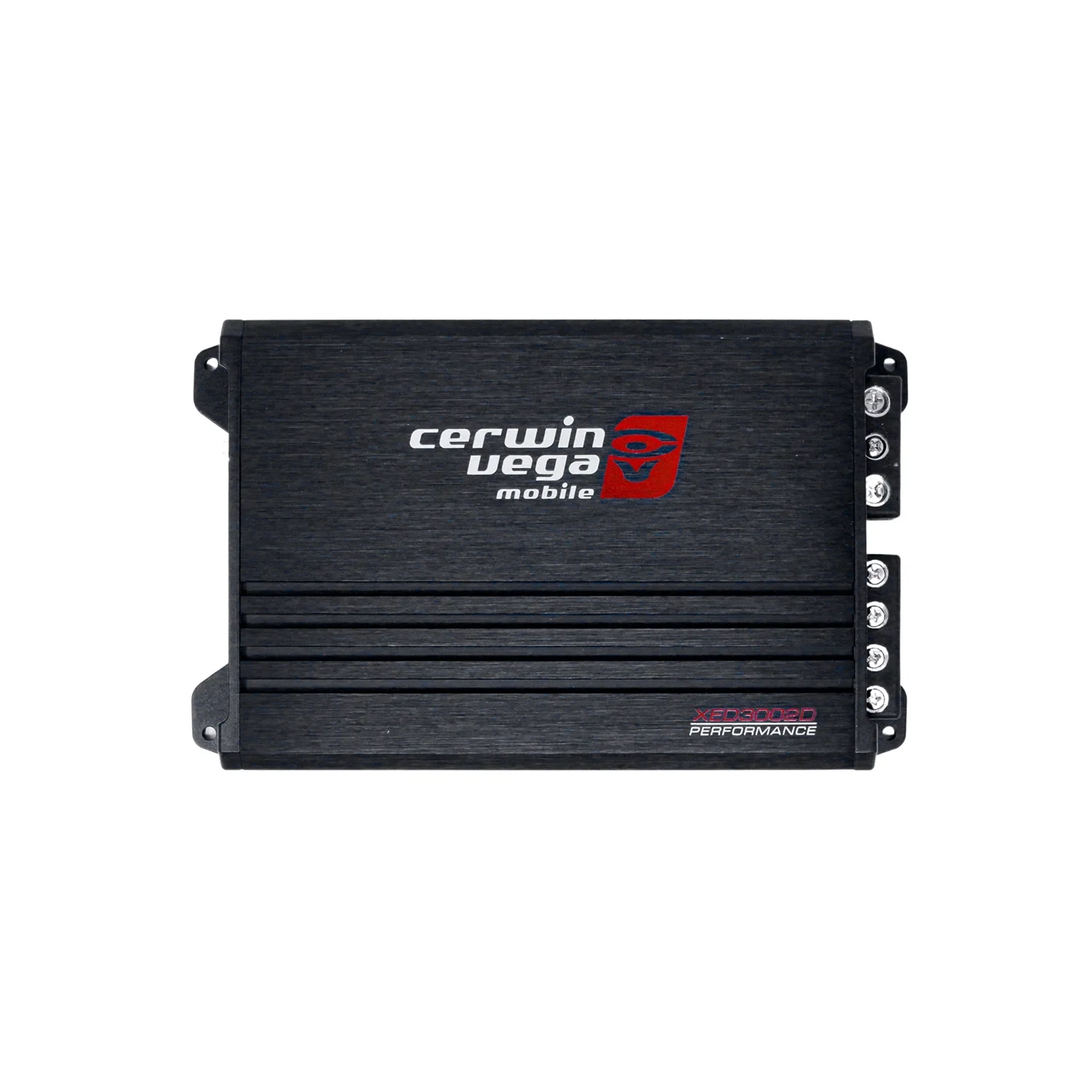

XED3002D XED Series 2-Channel Full Range Class-D Amplifier - 250W Max
Part # XED3002D
Coming soon
XED Series 2-Channel Full Range Class-D Amplifier - 250W Max. Made for car audio setups.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Cerwin-Vega
- FREQUENCY RESPONSE (HZ)
- 35HZ - 350HZ
- RMS POWER PER CHANNEL 4Ω
- 80W x 2
- RMS POWER PER CHANNEL 2Ω
- 120W x 2
- Power Supply
- Full PWM
- Power Supply Threshold
- 10.0V-16.0V (DC)
- Idle Current
- (0.5A)
- THD 4 (100Hz @4Ω)
- <0.1%
- S/N Ratio (A weighted @1W)
- -85dBA
- S/N Ratio (A weighted @FP)
- -101.1dBA
- Low Input Level
- 250mV-12V
- High Input Level
- 1.3V~>20.0V
- Output Impedance
- 2Ω
- Damping Factor (50Hz @ 4Ω)
- >70
- Bandwidth (-3dB)
- 10Hz-30KHz
