Hertz

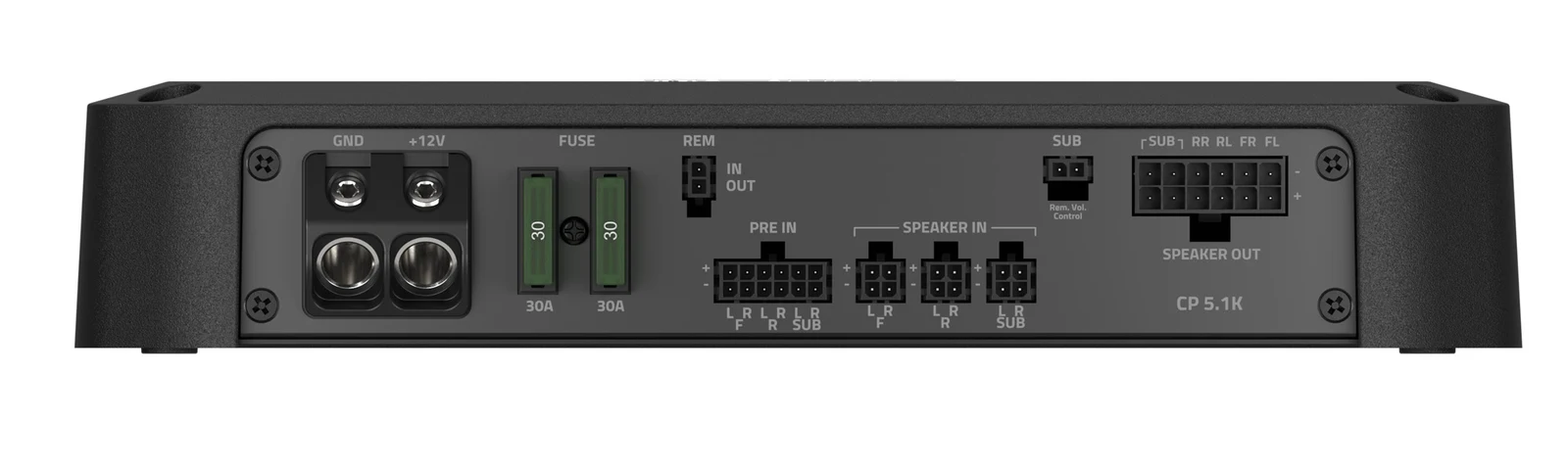

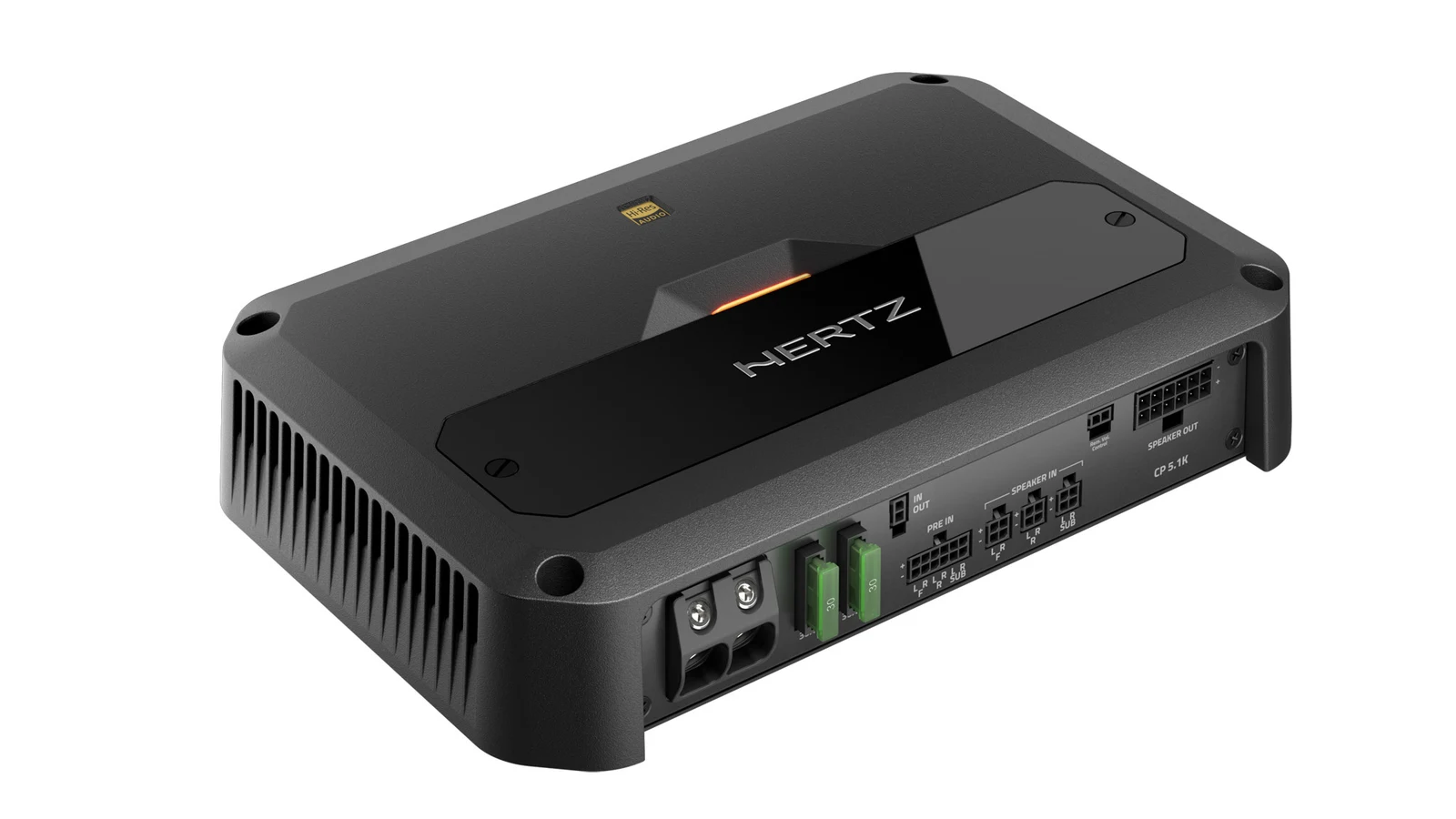

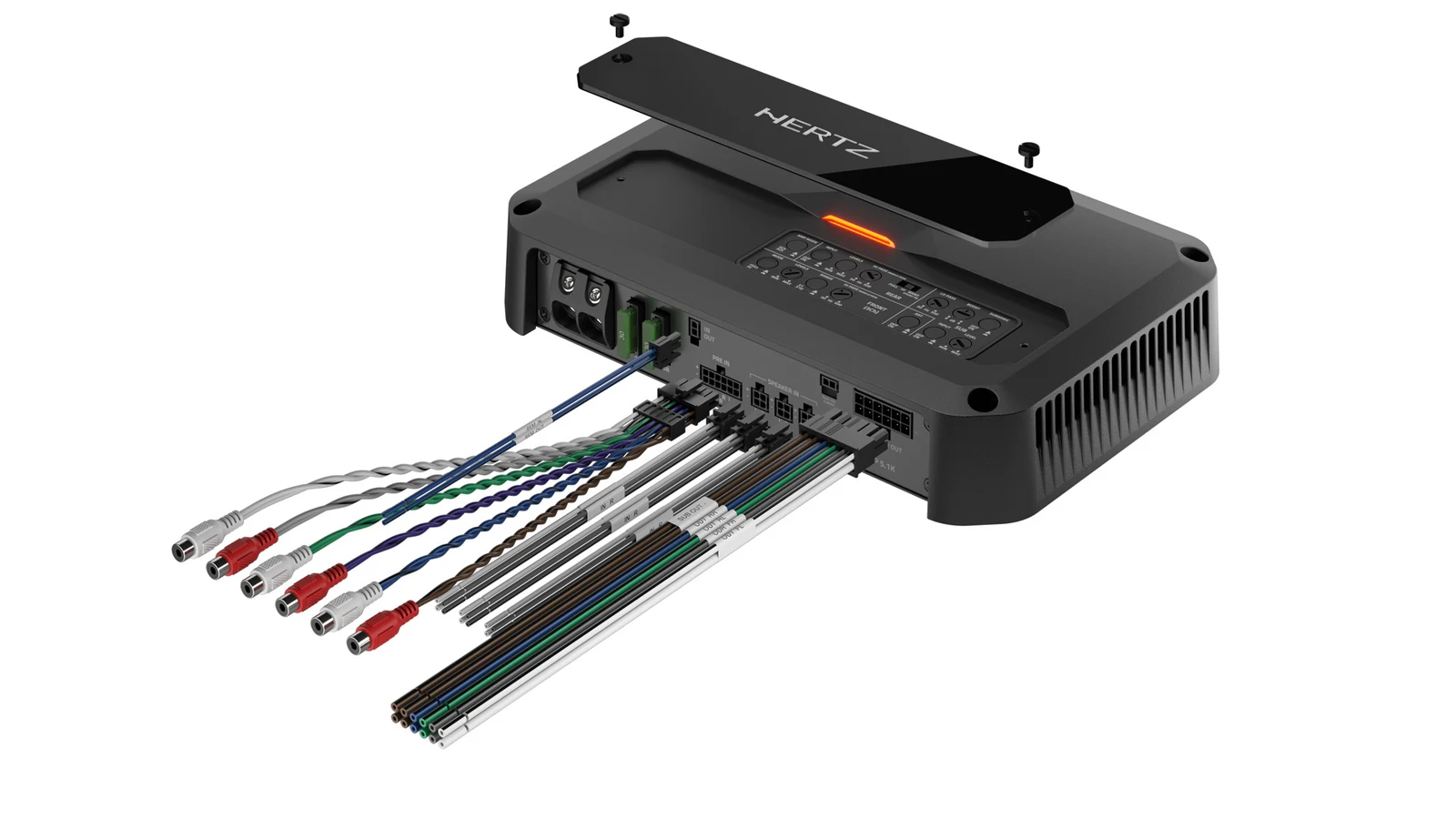

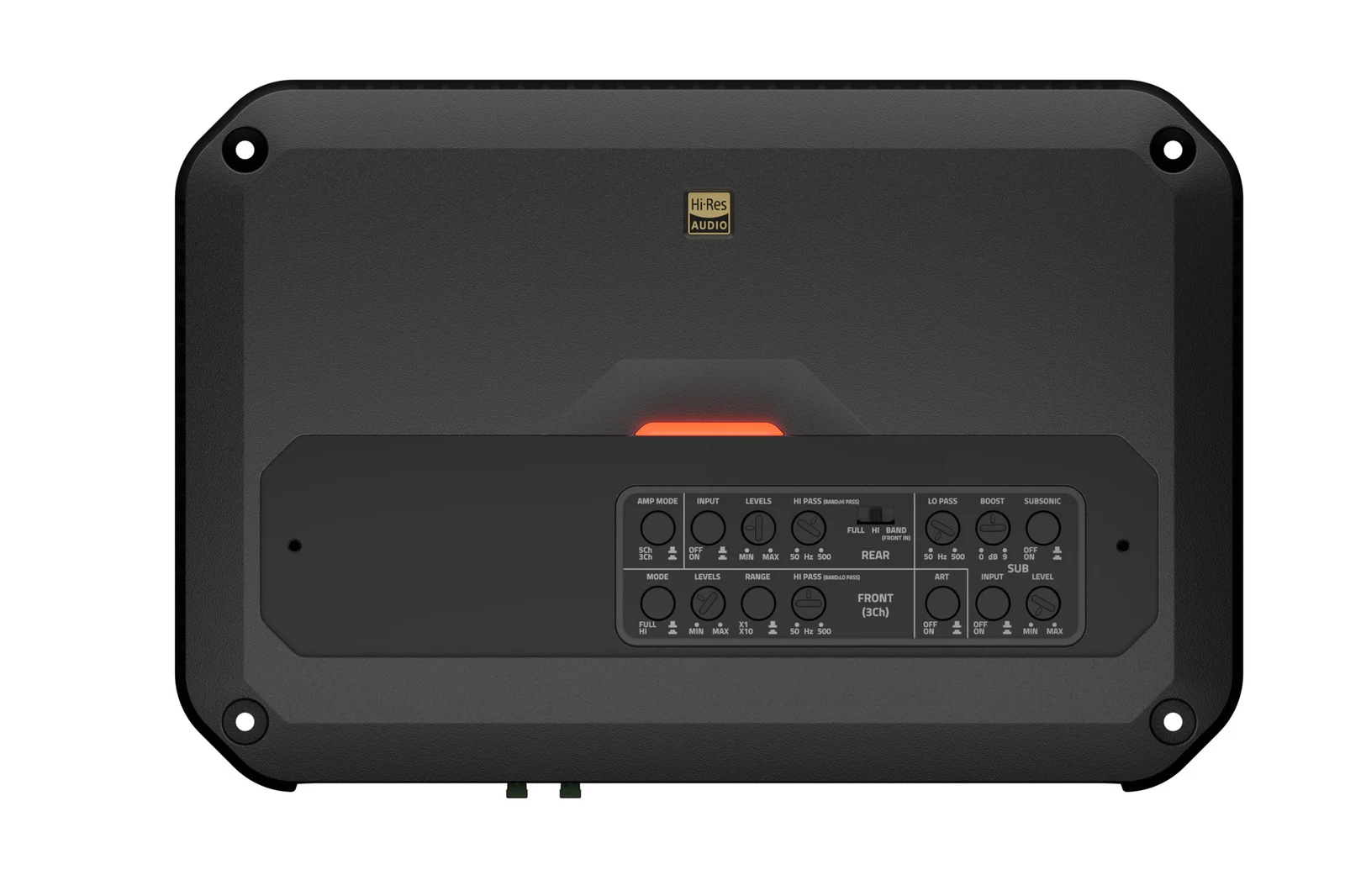

CP 5.1K Amplifier
Part # CP 5.1K
Coming soon
Amplifier. Made for car audio setups. At a glance: 5 - 3 channels.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Hertz
- Channels
- 5 - 3
- Amp class
- D
- Nominal power supply voltage (fuse)
- 11 ÷ 15 VDC (2 x 30 A)
- Operating power supply voltage
- 9 ÷ 18 VDC
- Idling current
- 1.90 A
- Standby current draw
- 4 uA
- Consumption, MIN load impedance (Max Musical Power)
- 48 A
- Remote IN
- 4 ÷ 17 VDC (1 mA)
- ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only)
- 1.5 VDC
- Efficiency
- 83%
- Distortion - THD @ 100 Hz, 70% Rated Power
- 0,01 % (F/R Ch) - 0,06 % (SUB Ch)
- Damping factor @ 1 kHz, 1W
- 160 (F/R Ch) - 180 (SUB Ch)
- Bandwidth @ -3 dB
- 10Hz ÷ 47kHz (F/R Ch) - 10Hz ÷ 500Hz (SUB Ch)
- S/N ratio (A-weighted @ 1 V Input)
- 101 dBA (F/R Ch) - 116 dBA (SUB Ch)
