Hertz

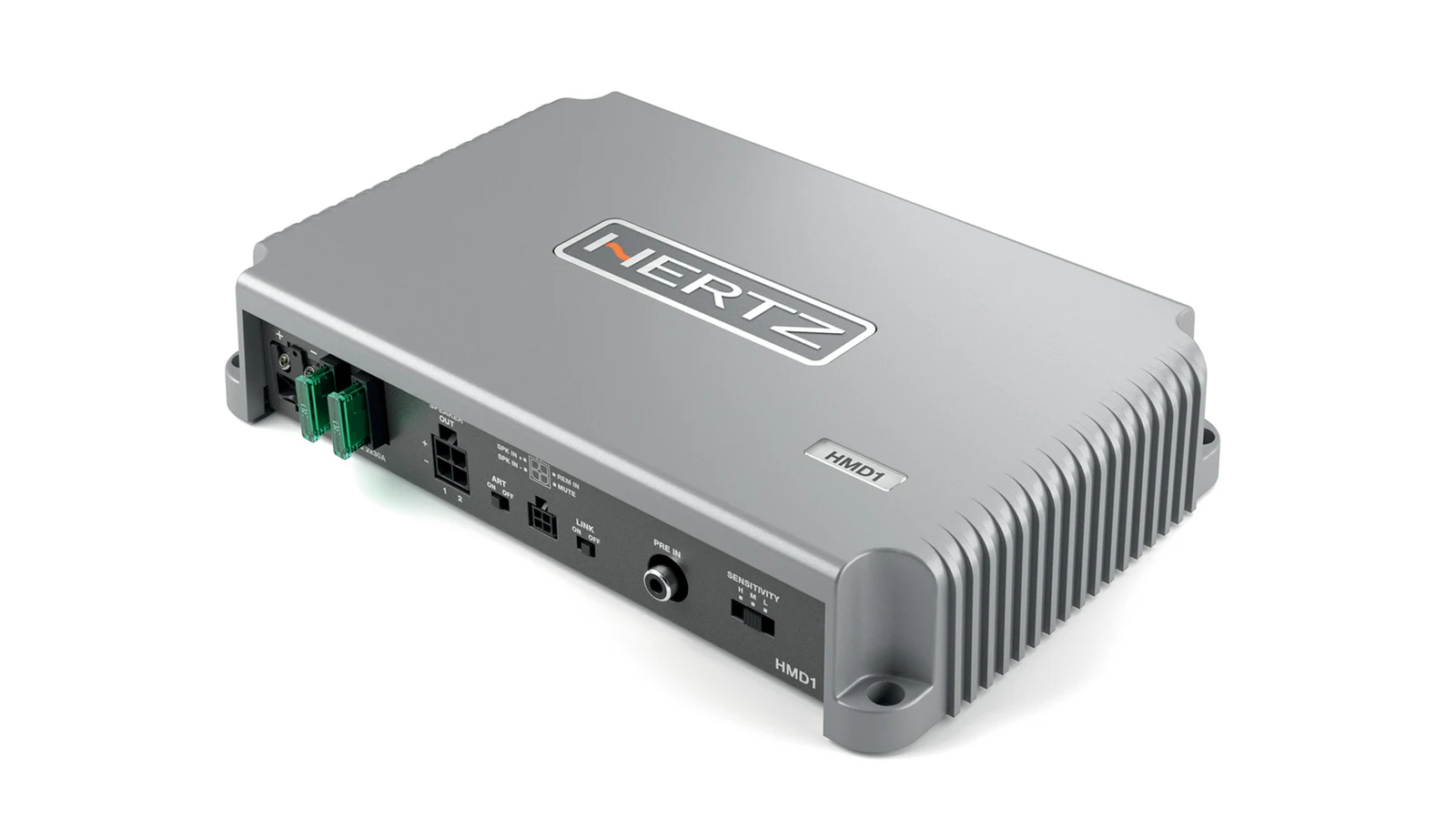

HMD1 24V mono amplifier
Part # HMD1 24V
Coming soon
mono amplifier. Made for marine audio setups. At a glance: 1 channels.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Hertz
- Channels
- 1
- Power supply voltage / fuse
- 22 ÷ 34 VDC / 2 x 15A
- Operating power supply voltage
- 14 ÷ 36 VDC
- Idling current
- 0.7 A
- Idling current off
- 0.07 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power
- 25 A
- Remote IN
- 6.5 ÷ 34 VDC (1 mA)
- ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)
- 2 ÷ 7 VDC
- Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power
- 0.1%
- Damping factor @ 1 kHz, 4Ω, 2 VRMS
- 140
- Bandwidth @ -1.5 dB
- 10 Hz ÷ 500 Hz
- S/N ratio (A weighted @ 1 V Input) Master Input
- 110 dBA
- Input sensitivity Pre-In
- Selectable: 0.6 - 2.0 - 6.0 VRMS
- Input sensitivity Speaker-In
- Selectable: 2.0 - 6.5 - 20 VRMS
