Rockford Fosgate

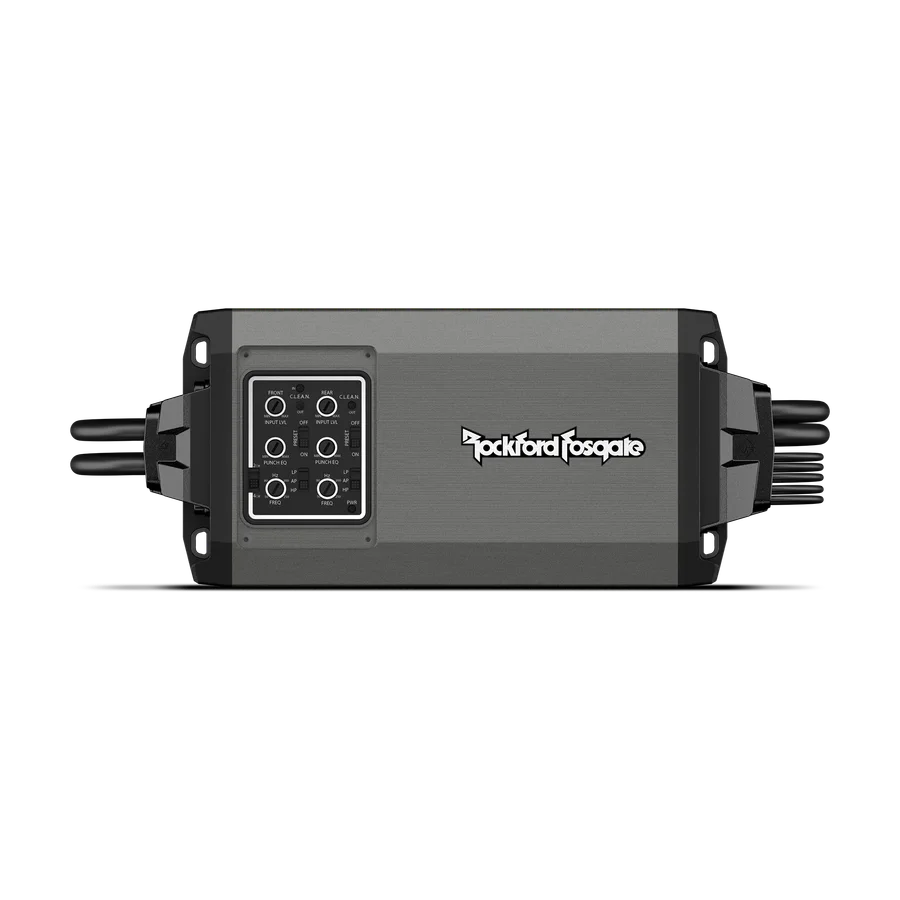

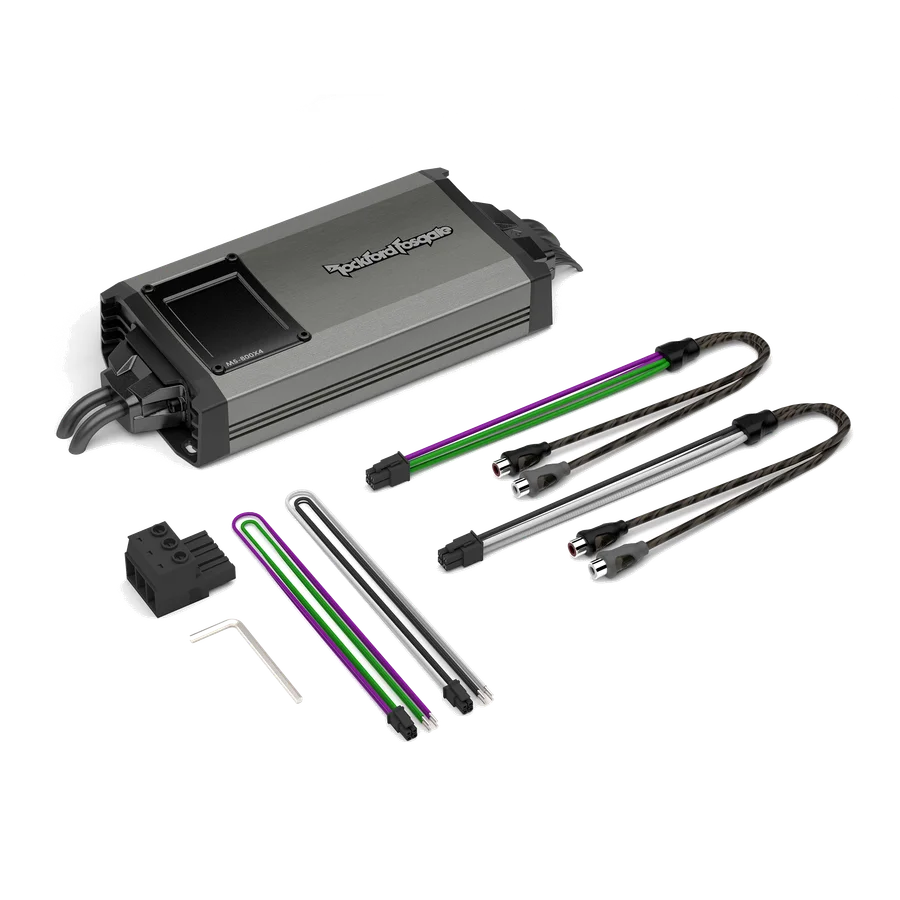

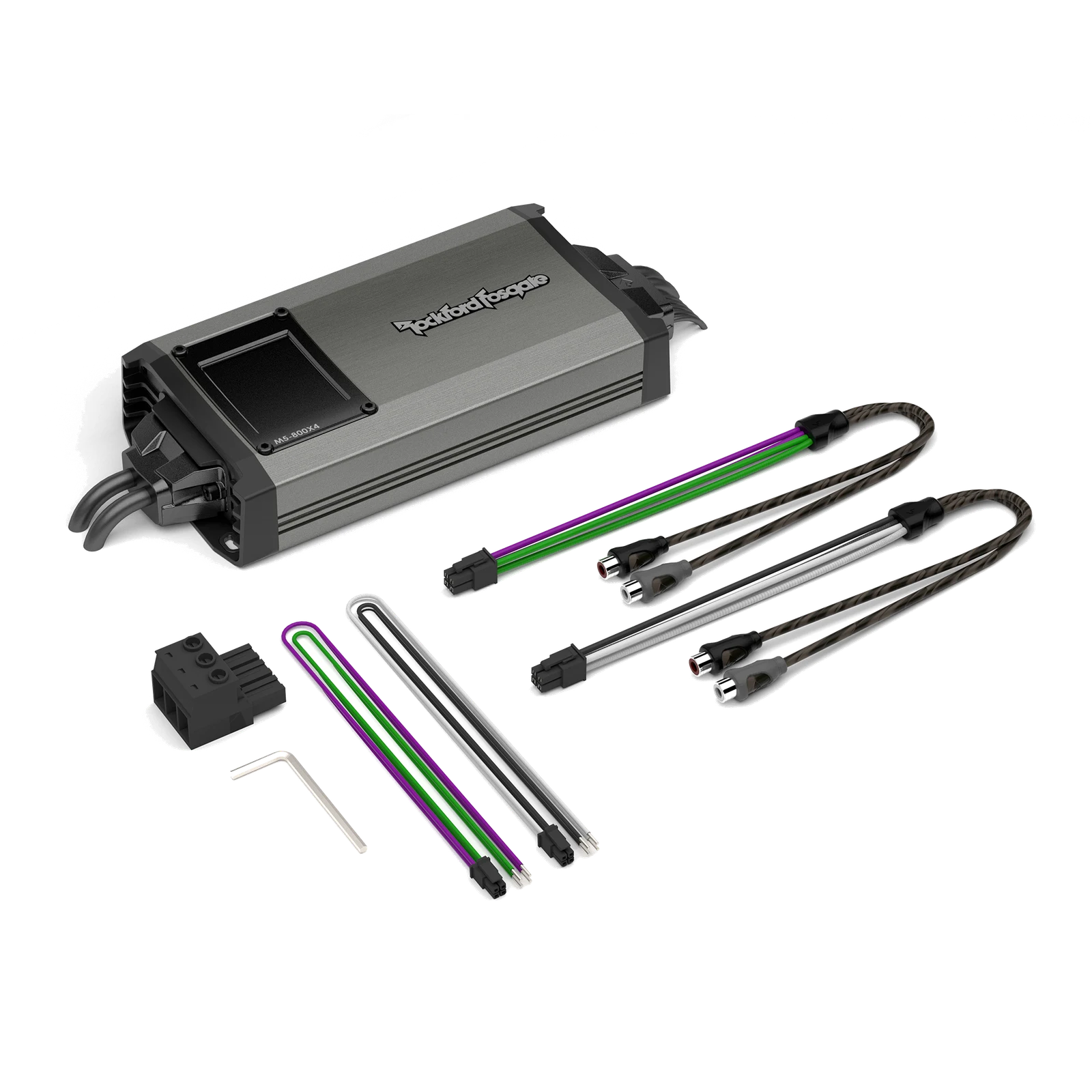

M5-800X4 800 Watt 4-Channel IPX6 Element Ready™ Amplifier
Part # M5-800X4
Coming soon
800 Watt 4-Channel IPX6 Element Ready™ Amplifier. Made for marine audio setups. At a glance: 10 Hz - 50 kHz.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Rockford Fosgate
- Number of Channels
- 4
- Total Power (Sum of Rated Power)
- 800 Watts
- Rated Power (RMS Continuous Power)
- CTA-2006 Continuous Power Rating ≤1.0% THD+N 100 Watts x 4 @ 4Ω 100 Watts x 4 @ 2Ω 200 Watts x 2 @ 4Ω Bridged/Mono
- Dynamic Power (PVC/PowerCube®)
- CTA-2006 Dynamic Power Rating 125 Watts x 4 @ 4Ω 200 Watts x 4 @ 2Ω 400 Watts x 2 @ 4Ω Bridged/Mono
- Bridgeable
- Yes
- Frequency Response
- 10 Hz - 50 kHz
- Input Sensitivity
- 150mVrms - 12Vrms
- Circuit Topology Class
- Class-AD
- Efficiency (average)
- >75%
- Total Harmonic Distortion (THD+Noise)
- <0.25% THD+N @ 1 Watt
- Signal Input
- Low-Level: 4 RCA High-Level: (2) 4-Pin Molex
- Tone Controls
- Front/Rear: 0-14dB @ 12.5kHz Front/Rear: 0-18dB @ 45Hz
- Crossover Controls
- High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth All-Pass: Yes
- Remote Controls
- No
