Rockford Fosgate

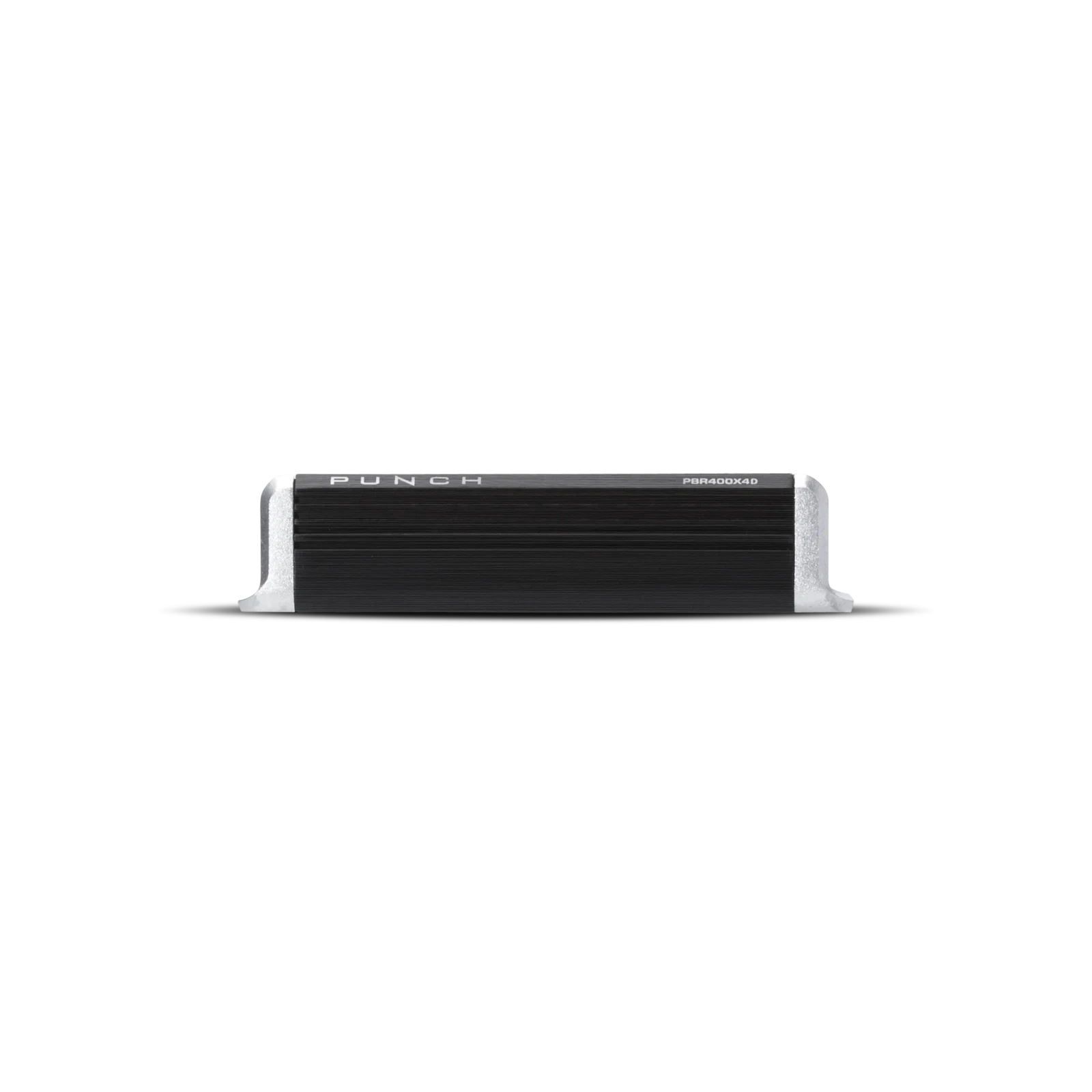

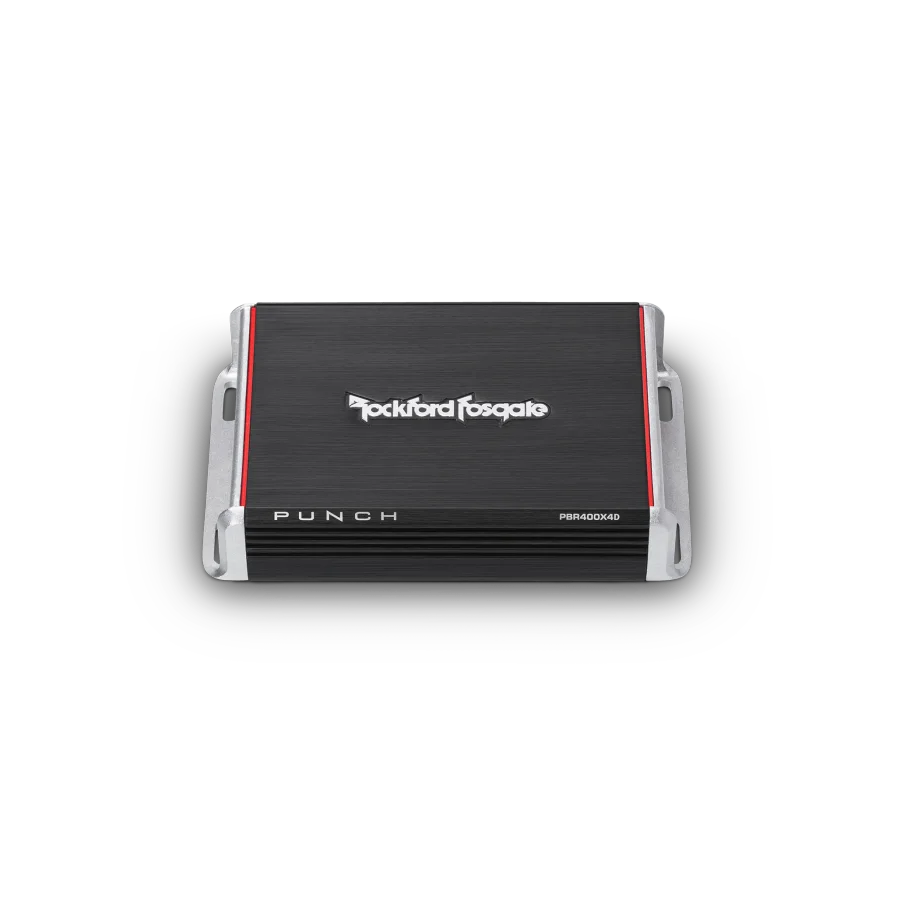

PBR400X4D Punch Boosted Rail 400 Watt Full-Range 4-Channel Amplifier
Part # PBR400X4D
Coming soon
Punch Boosted Rail 400 Watt Full-Range 4-Channel Amplifier. Made for car audio setups. At a glance: 20Hz - 20kHz +/- 1dB.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Rockford Fosgate
- Number of Channels
- 4
- Total Power (Sum of Rated Power)
- 400 Watts
- Rated Power (RMS Continuous Power)
- 50 Watts x 4 @ 4-Ohm 100 Watts x 4 @ 2-Ohm 200 Watts x 2 @ 4-Ohm Bridged
- Dynamic Power (PVC/PowerCube®)
- 75 Watts x 4 @ 4-Ohm 130 Watts x 4 @ 2-Ohm 270 Watts x 2 @ 4-Ohm Bridged
- Bridgeable
- Yes
- Frequency Response
- 20Hz - 20kHz +/- 1dB
- Input Sensitivity
- 150 mV to 12 V
- Circuit Topology Class
- Class D
- Efficiency (average)
- > 75%
- Total Harmonic Distortion (THD+Noise)
- 4-Ohm < 1.0 2-Ohm < 1.0
- Signal Input

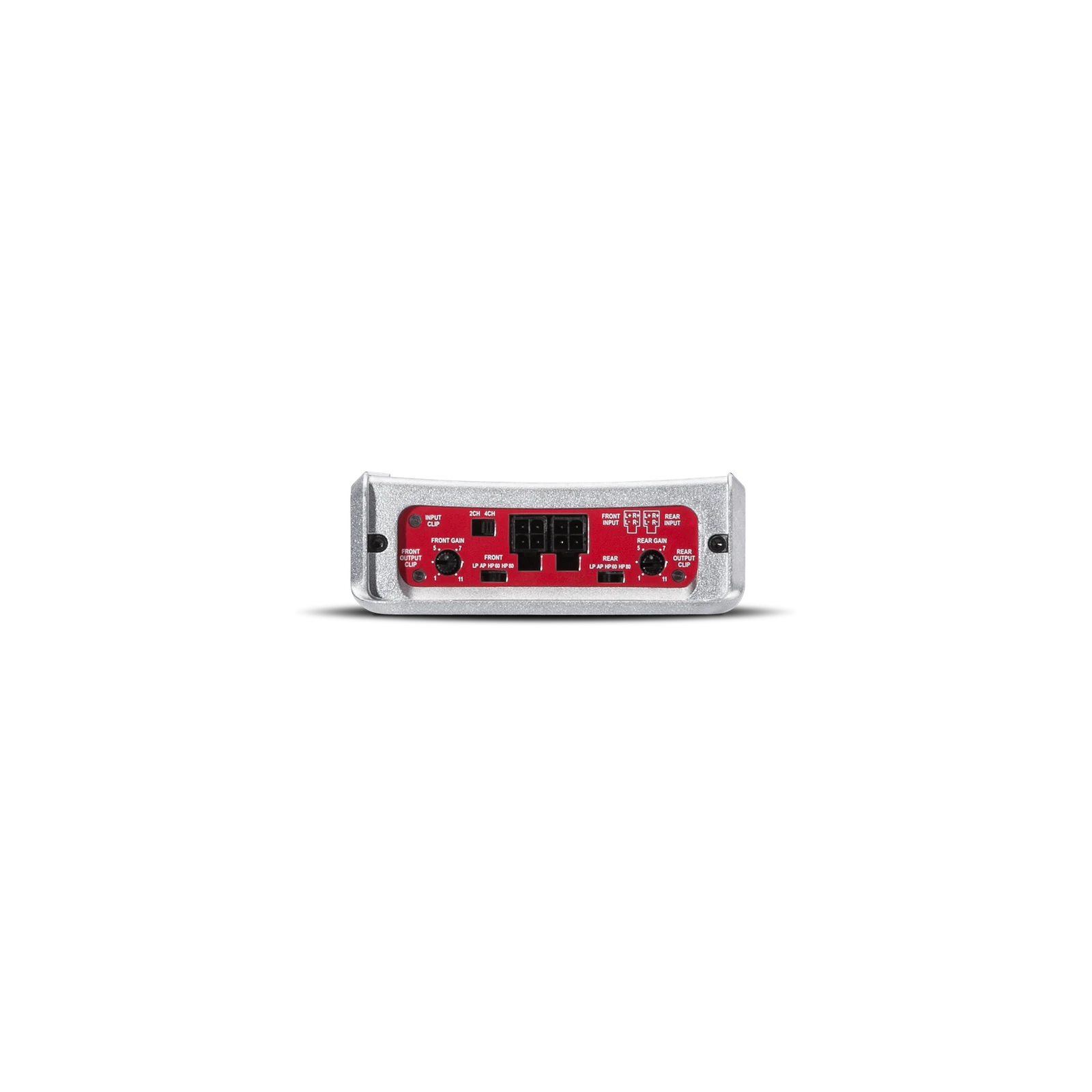

- Input Switch: 2ch/4ch input switch Hi-Level: Variable DC offset sensitivity High-Level: Harness Low-Level: 2 Pair RCA
- Crossover Controls
- High-Pass: 60Hz or 80Hz @ 12dB/Octave Low-Pass: 80Hz @ 12dB/Octave
- Visual Indicators
- Power: Blue Protect: Red Input Clip: Red Output Clip: Blue/Violet/Red LED Color Legend BLUE: <0.5% TDH VIOLET: 1% THD RED: ≥10% THD
- Power Wire Gauge
- 8 AWG
