Rockford Fosgate

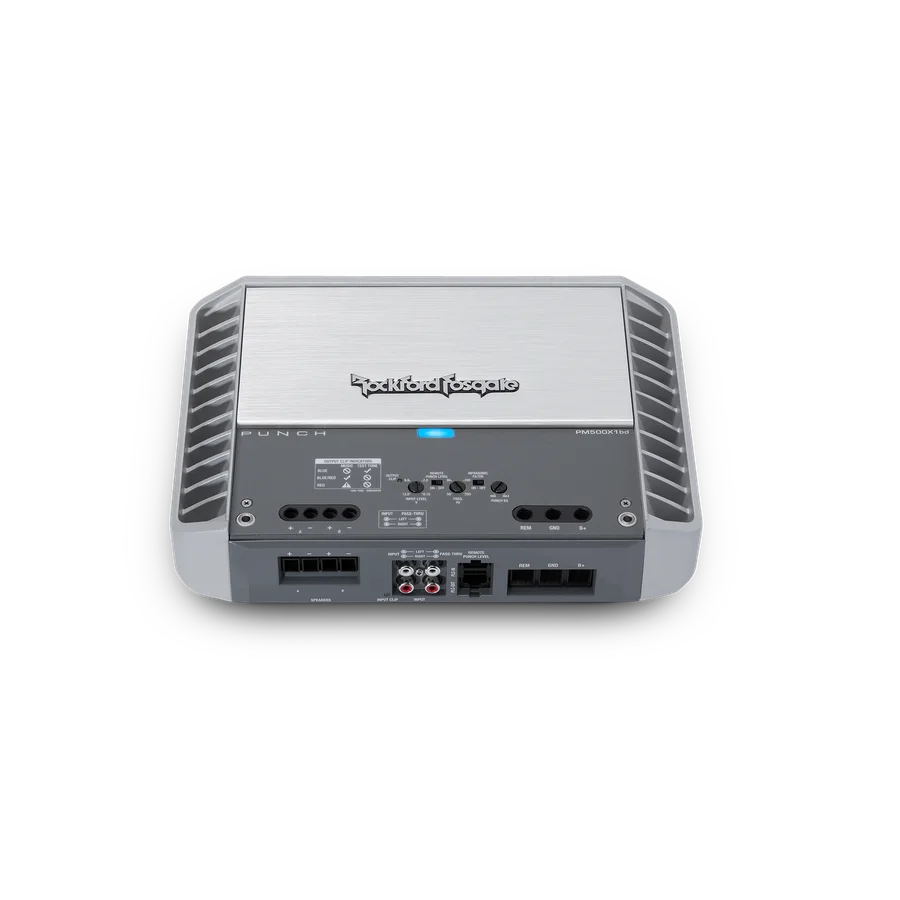

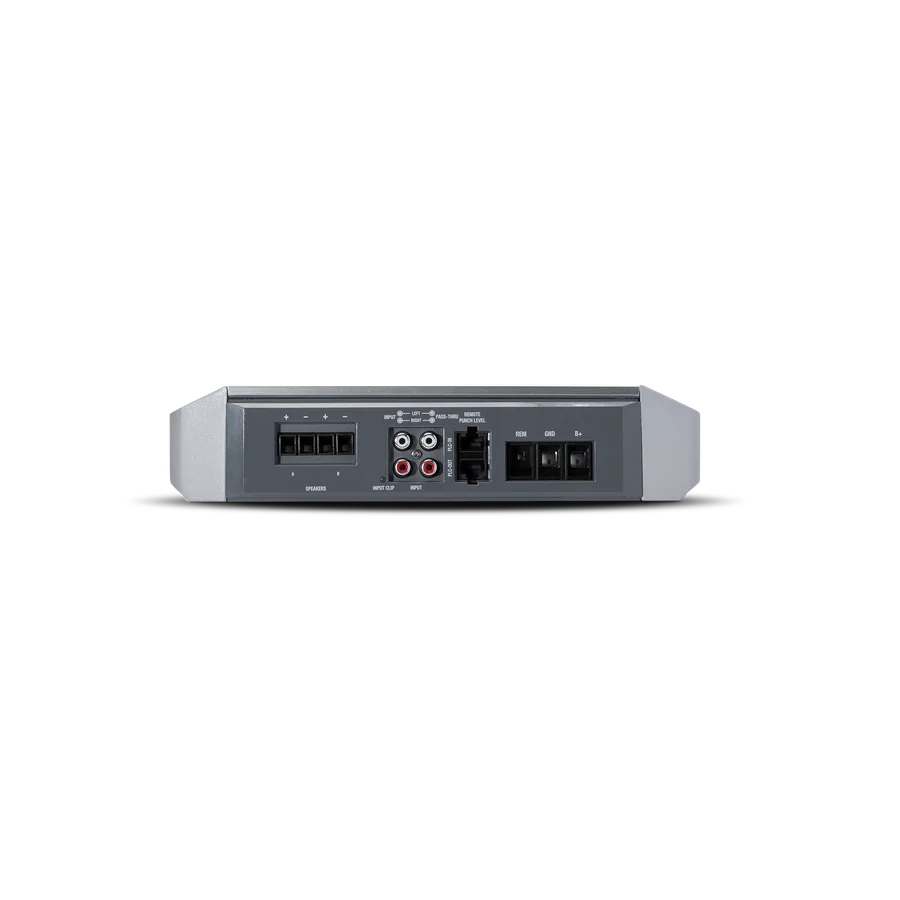

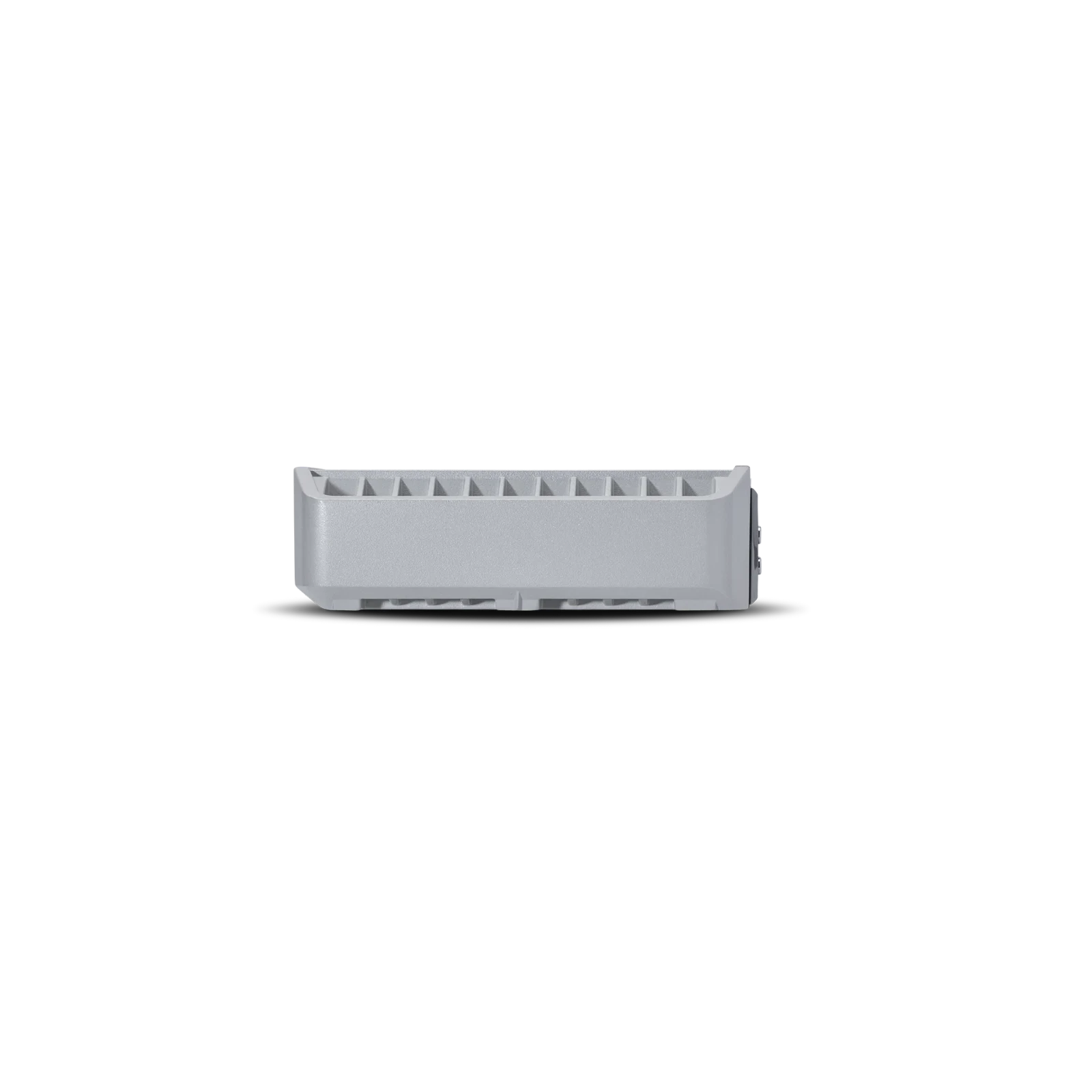

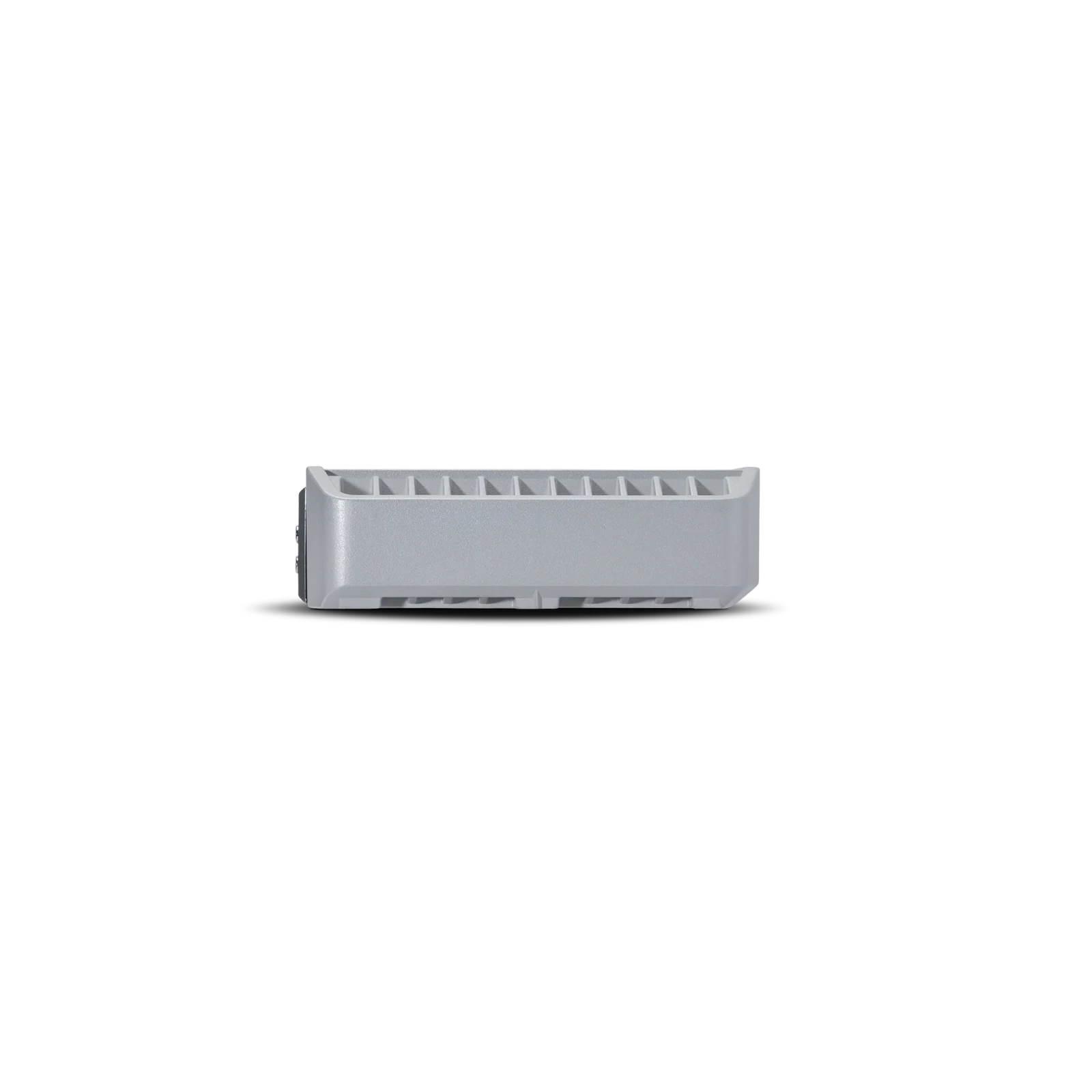

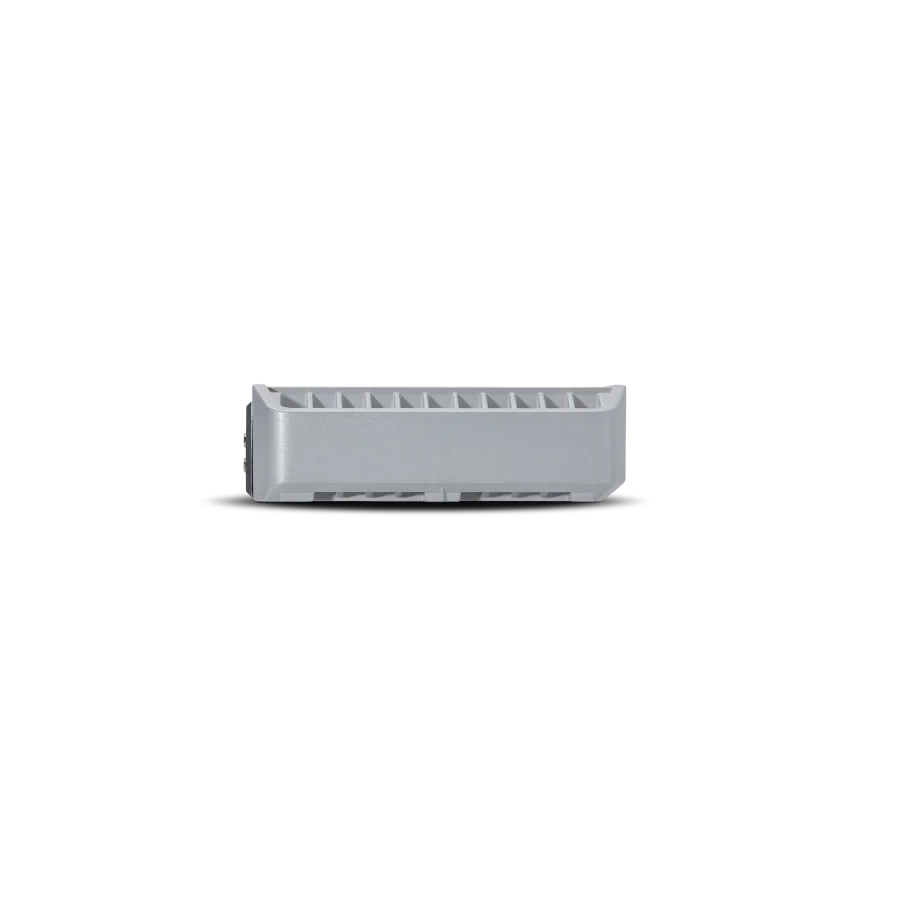

PM500X1bd Punch Marine 500 Watt Class-bd Mono Amplifier
Part # PM500X1bd
Coming soon
Punch Marine 500 Watt Class-bd Mono Amplifier. Made for marine audio setups. At a glance: 20Hz to 250Hz +/- 1.0dB.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Rockford Fosgate
- Number of Channels
- 1
- Total Power (Sum of Rated Power)
- 500 Watts
- Rated Power (RMS Continuous Power)
- 150 Watts x 1 @ 4-Ohm 300 Watts x 1 @ 2-Ohm 500 Watts x 1 @ 1-Ohm
- Dynamic Power (PVC/PowerCube®)
- 224 Watts x 1 @ 4-Ohm 410 Watts x 1 @ 2-Ohm 787 Watts x 1 @ 1-Ohm
- Bridgeable
- No
- Frequency Response
- 20Hz to 250Hz +/- 1.0dB
- Input Sensitivity
- 150 mV - 12 V
- Circuit Topology Class
- Class BD
- Efficiency (average)
- 86% @ 4-Ohm
- Total Harmonic Distortion (THD+Noise)
- 4-Ohm: <1.0% 2-Ohm: <1.0% 1-Ohm: <1.0%
- Signal Input
- Hi/Low level: 1 RCA pair
- Signal Output
- Low level: 1 RCA pair
- Tone Controls
- Punch EQ2 Bass: 0dB to +18dB @ 45Hz
- Crossover Controls
- Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth Infrasonic Filter (IF): 28Hz @ 12dB/Octave All-Pass (AP): No
