Rockford Fosgate

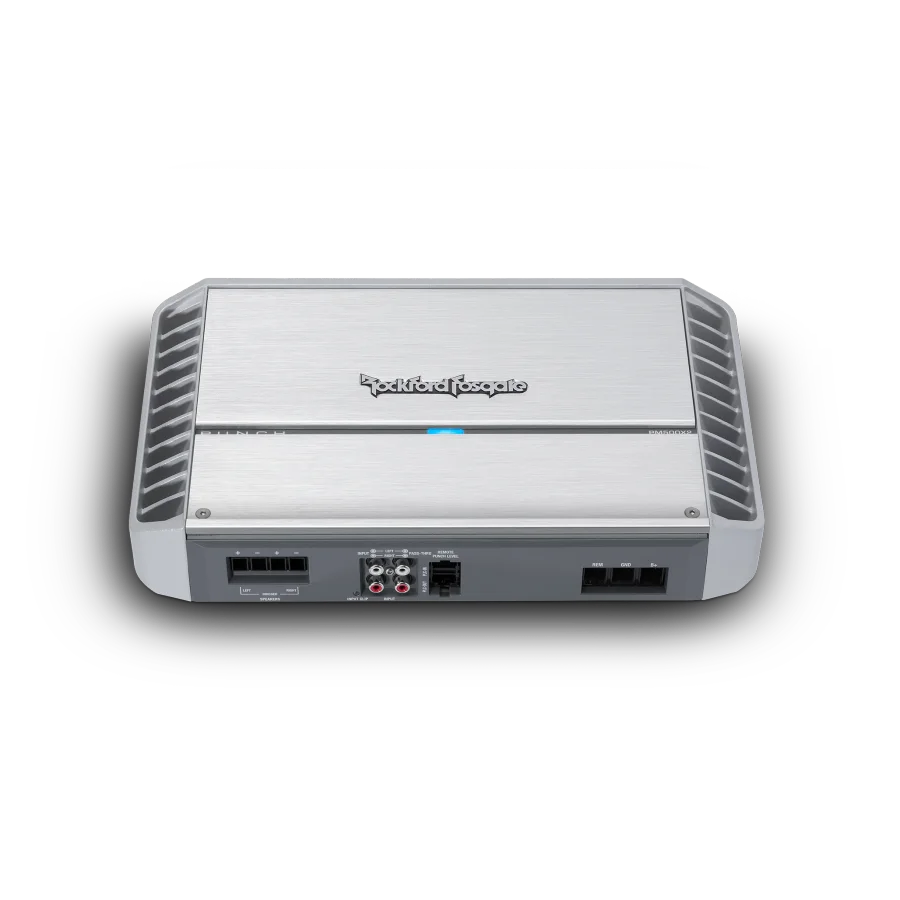

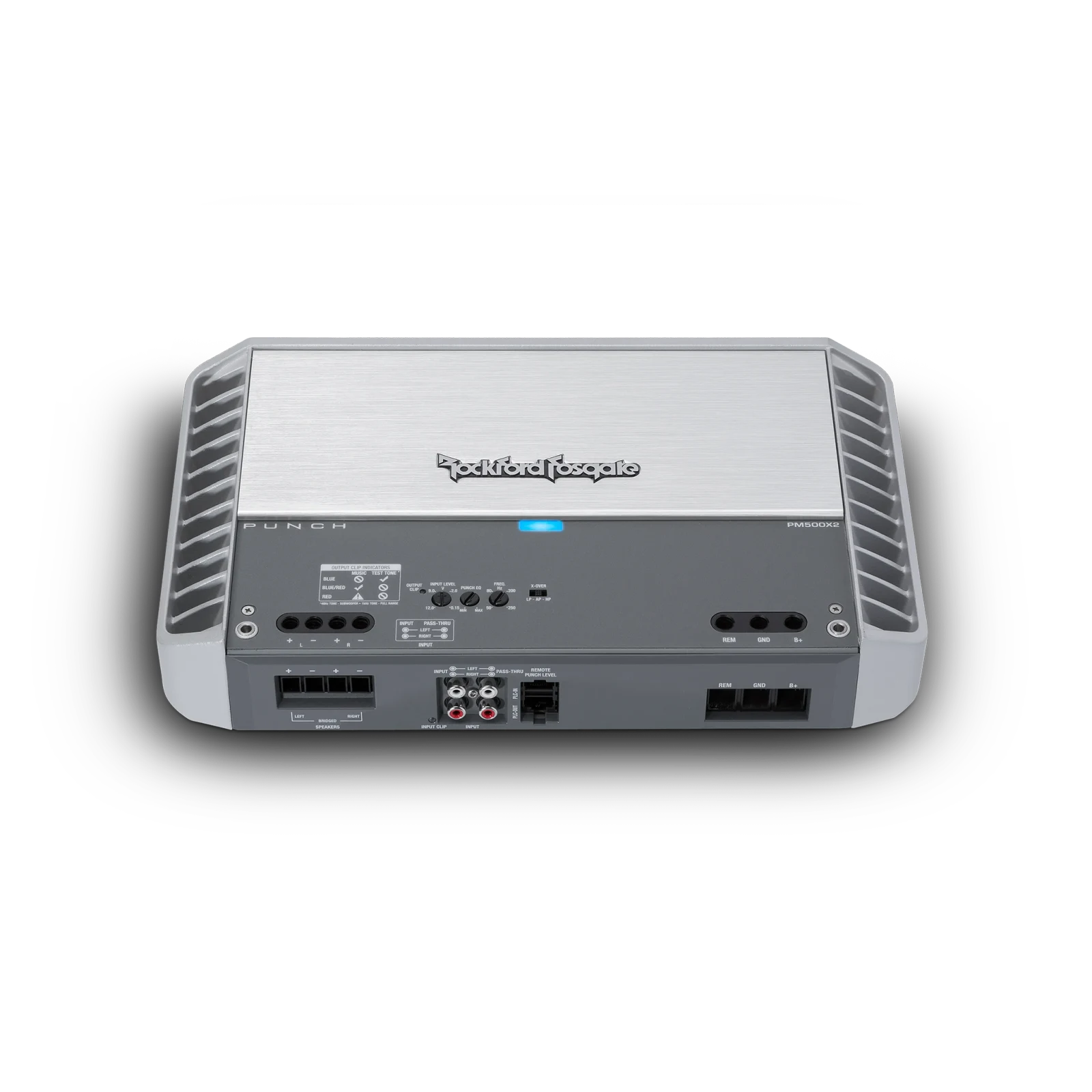

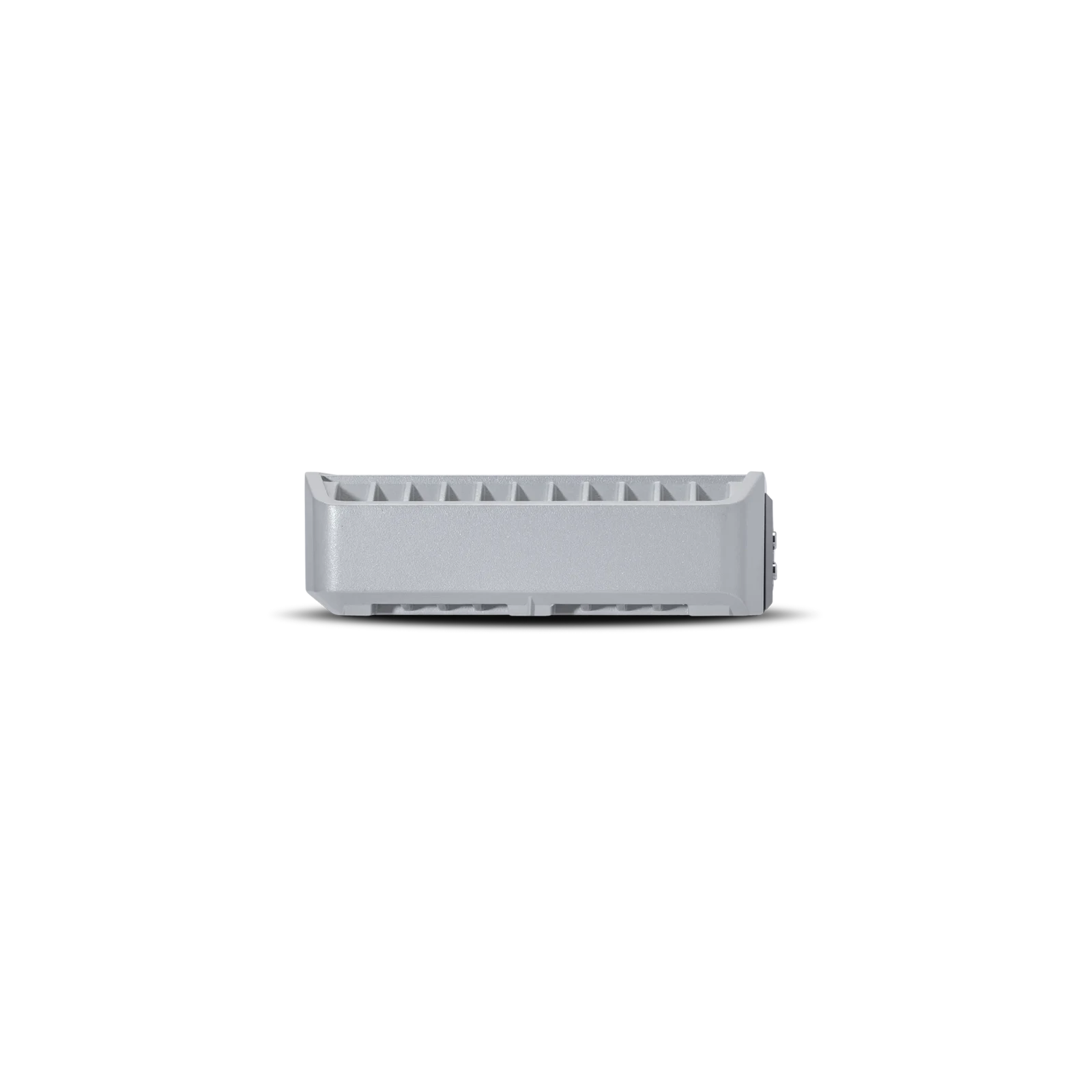

PM500X2 Punch Marine 500 Watt 2-Channel Amplifier
Part # PM500X2
Coming soon
Punch Marine 500 Watt 2-Channel Amplifier. Made for marine audio setups. At a glance: 20Hz to 20kHz +/- 1.0dB.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Rockford Fosgate
- Number of Channels
- 2
- Total Power (Sum of Rated Power)
- 500 Watts
- Rated Power (RMS Continuous Power)
- 150 Watts x 2 @ 4-Ohm 250 Watts x 2 @ 2-Ohm 500 Watts x 1 @ 4-Ohm Bridged
- Dynamic Power (PVC/PowerCube®)
- 223 Watts x 2 @ 4-Ohms 0° Res 365 Watts x 2 @ 2-Ohms 0° Res
- Bridgeable
- Yes
- Frequency Response
- 20Hz to 20kHz +/- 1.0dB
- Input Sensitivity
- 150 mV - 12 V
- Circuit Topology Class
- Class A/B
- Efficiency (average)
- 73% @ 4-Ohm
- Total Harmonic Distortion (THD+Noise)
- 4-Ohm: <1.0% 2-Ohm: <1.0%
- Signal Input
- Hi/Low level: 1 RCA pair
- Signal Output
- Low level: 1 RCA pair
- Tone Controls
- Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or Punch EQ2 Treble: 0dB to +12dB @ 12kHz Function depends upon LP/AP/HP switch position
- Crossover Controls
- High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth All-Pass: Yes
