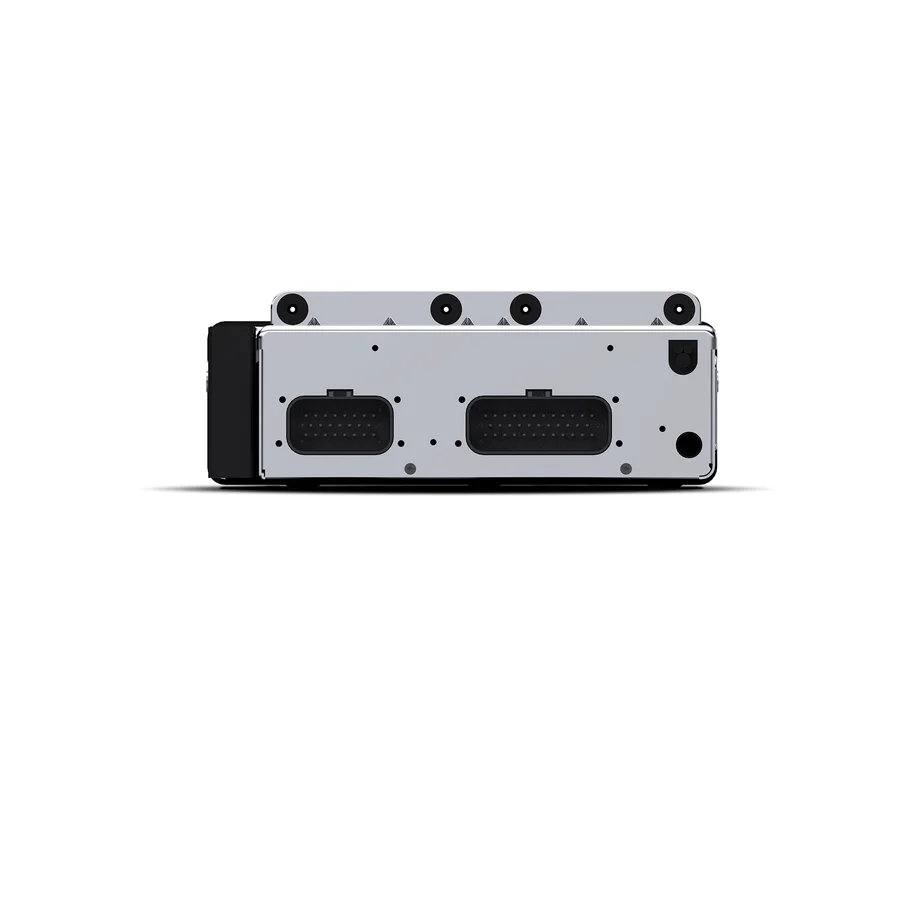

PMX-HD9813 Digital Media Receiver for Select 1998-2013 Harley-Davidson Models
Part # PMX-HD9813
Coming soon
Digital Media Receiver for Select 1998-2013 Harley-Davidson Models. Made for motorcycle audio setups. At a glance: RCA: 20Hz - 20 kHz High-Level: 20Hz - 20 kHz.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Rockford Fosgate
- Crossover
- Sub-Out variable from 60 Hz - 120 Hz
- Channel Separation
- RCA: > 50 dB High-Level: > 50 dB
- Output Impedance
- < 500 Ohms
- Signal-to-Noise Ratio
- RCA 2V: > 85 dB High Level (CEA-2006): > 75 dB Max Wrms: > 80 dB
- Output Power
- CEA-2006 Power Rating25W x 4 @ 4Ω RMS50W x 4 @ 2Ω MAX≤1.0% THD+N
- RCA Output Voltage
- Front: 4 V Max Rear: 4 V Max Sub: 4 V Max
- Frequency Response
- RCA: 20Hz - 20 kHz High-Level: 20Hz - 20 kHz
- Idle Current
- < 2 Amps
- Operating Voltage
- 9.5 - 16 VDC
- THD+N
- 4-Ohms: < 1.0 %
- USB Version
- 2.0
- Bluetooth®
- 3.0+EDR A2DP 1.3
- FM Tuner
- Range: 87.9 - 107.9 MHz Sensitivity: 8 dB Frequency Response: 20 - 15 kHz
- AM Tuner
- Range: 530 - 1710 kHz Sensitivity: 40 dB Frequency Response: 45 to 2.4 kHz
