Rockford FosgatePreview

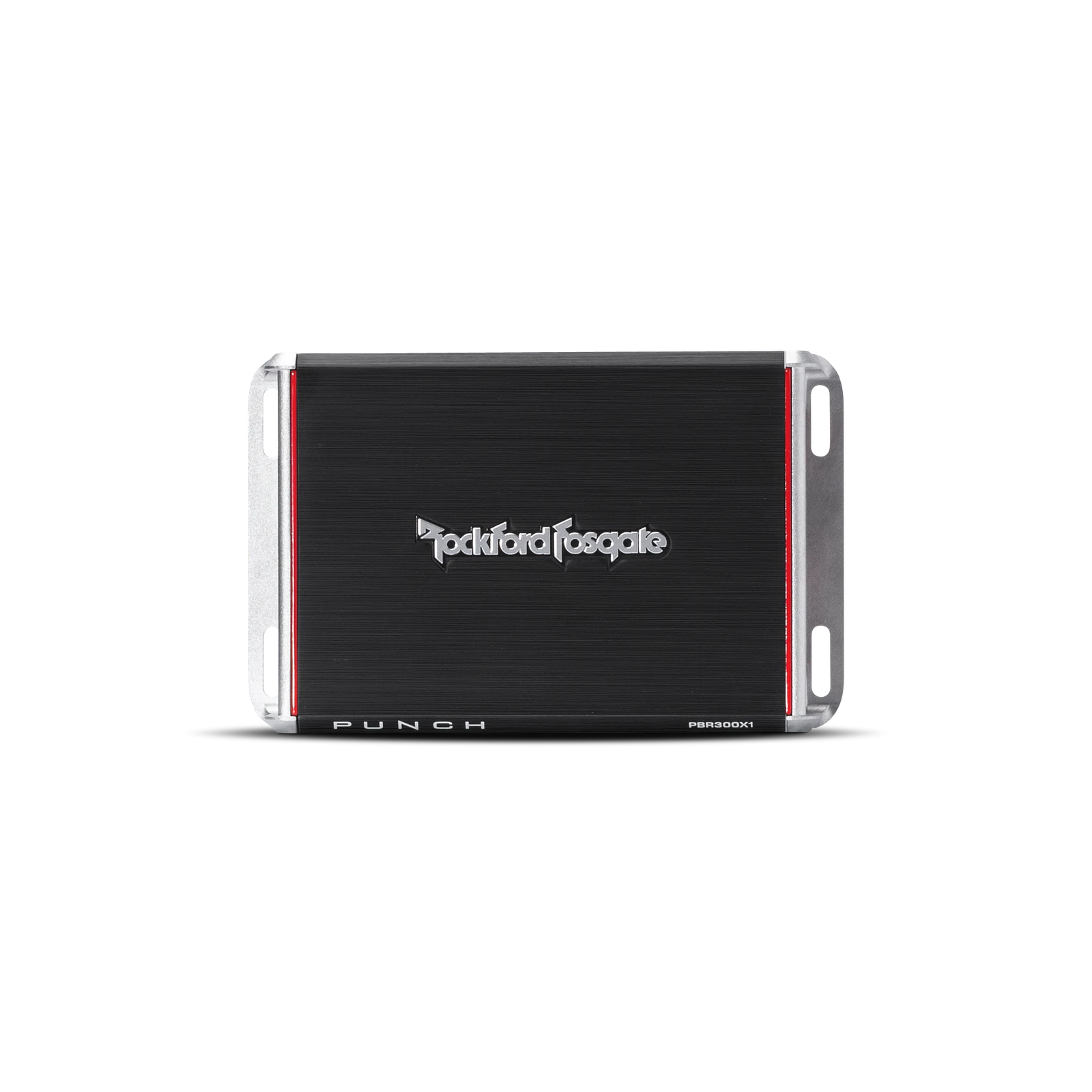

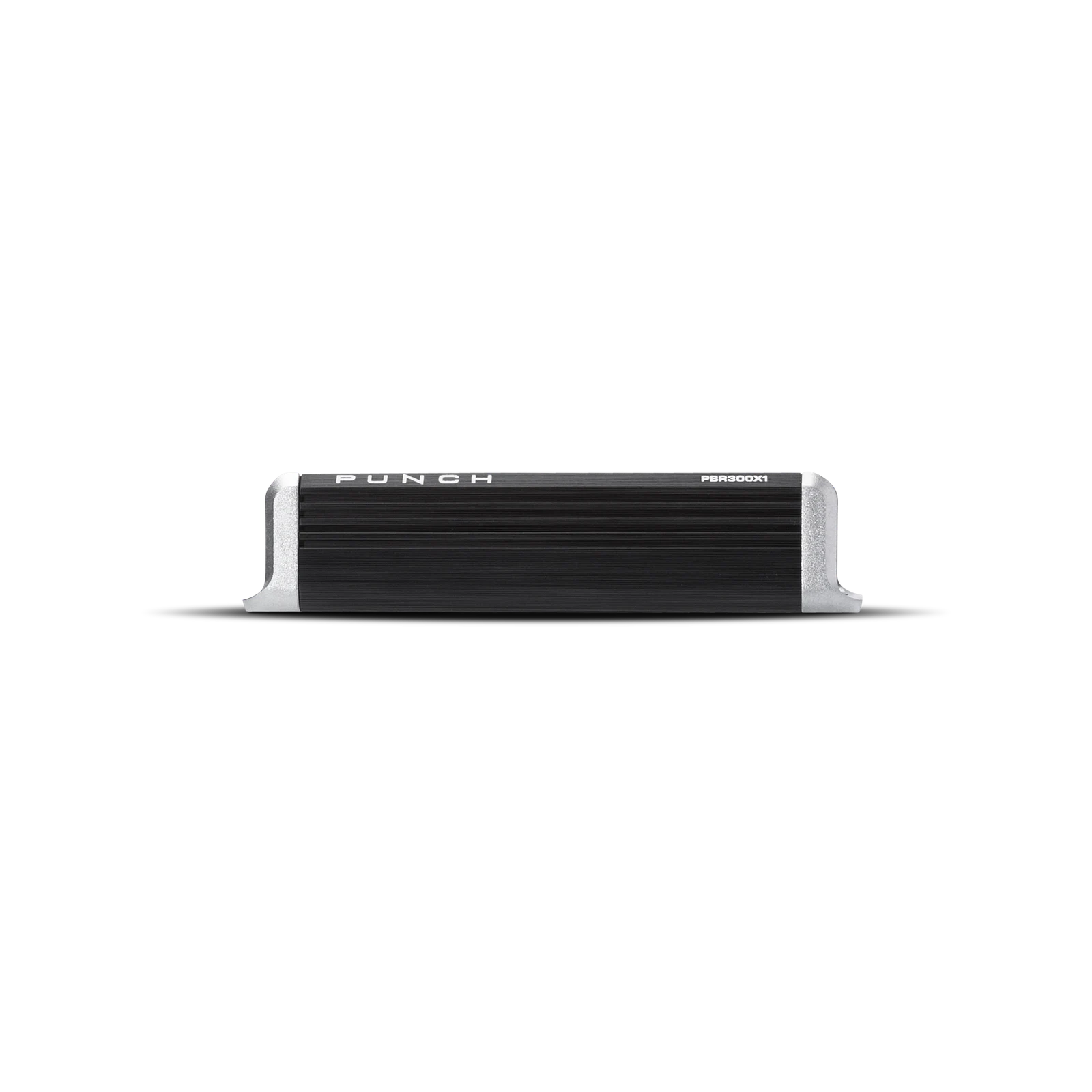

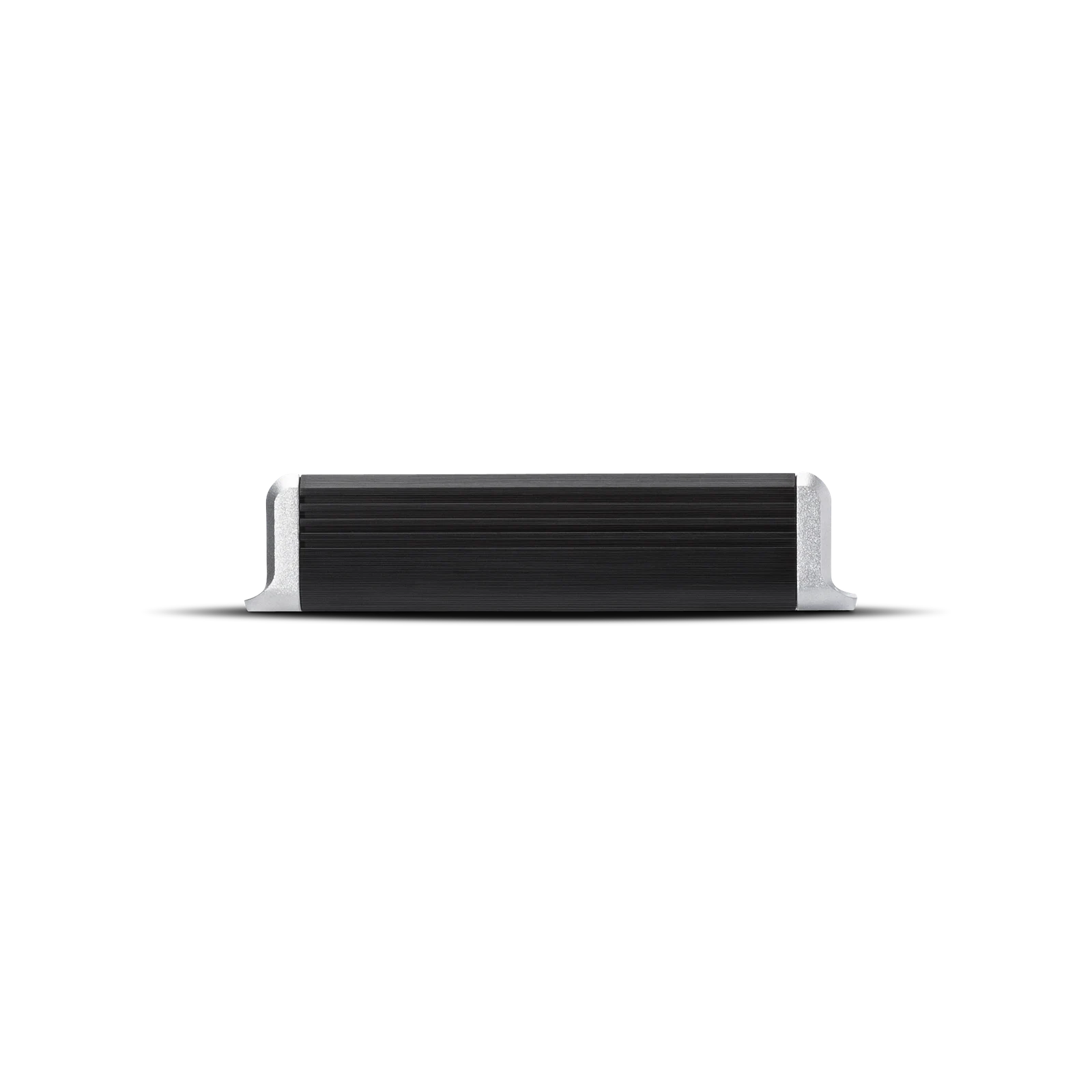

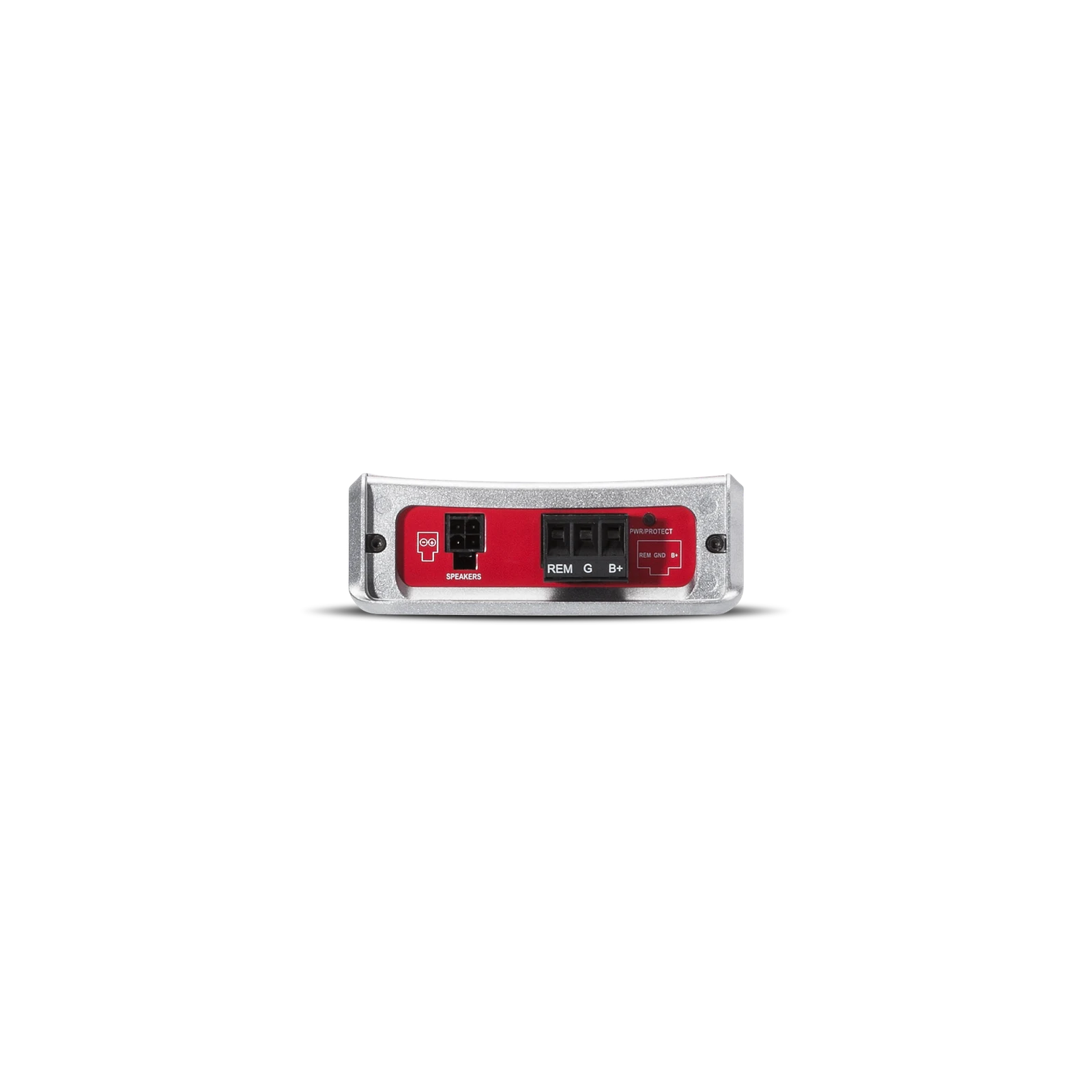

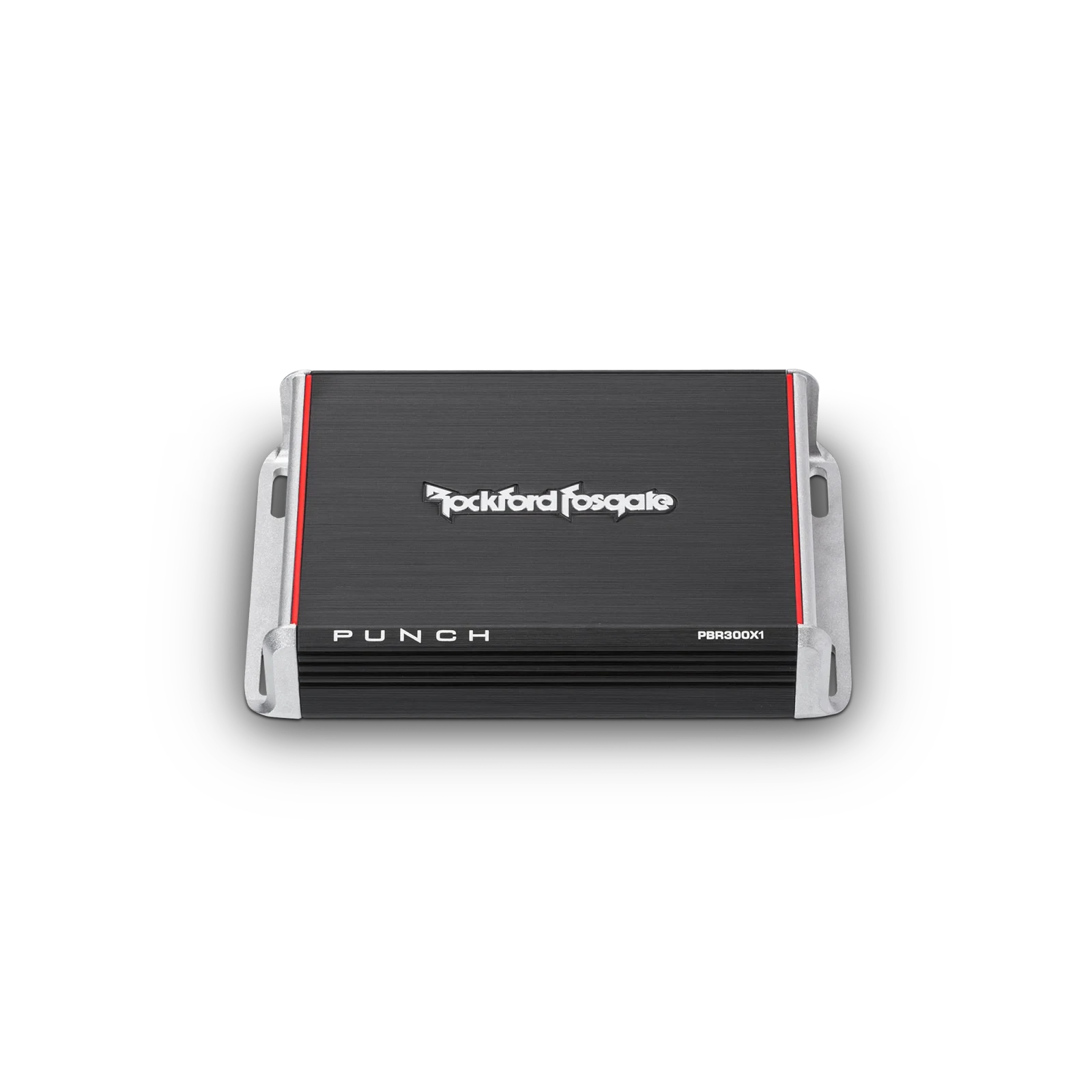

Punch Boosted Rail 300 Watt Mono Amplifier
Coming soon
Punch Boosted Rail 300 Watt Mono Amplifier. Made for car audio setups. At a glance: 20Hz - 250Hz +/-3dB.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Rockford Fosgate
- Number of Channels
- 1
- Total Power (Sum of Rated Power)
- 300 Watts
- Rated Power (RMS Continuous Power)
- 75 Watts x 1 @ 4-Ohm 150 Watts x 1 @ 2-Ohm 300 Watts x 1 @ 1-Ohm
- Dynamic Power (PVC/PowerCube®)
- 96 Watts x 1 @ 4-Ohm 189 Watts x 1 @ 2-Ohm 326 Watts x 1 @ 1-Ohm
- Bridgeable
- No
- Frequency Response
- 20Hz - 250Hz +/-3dB
- Input Sensitivity
- Low-Level: 150 mV - 4 V High-Level: 400 mV - 11 V
- Circuit Topology Class
- Class BR
- Efficiency (average)
- 75% @ 4-Ohm 75% @ 2-Ohm 75% @ 1-Ohm
- Total Harmonic Distortion (THD+Noise)
- 4-Ohm: <1.0% 2-Ohm: <1.0%

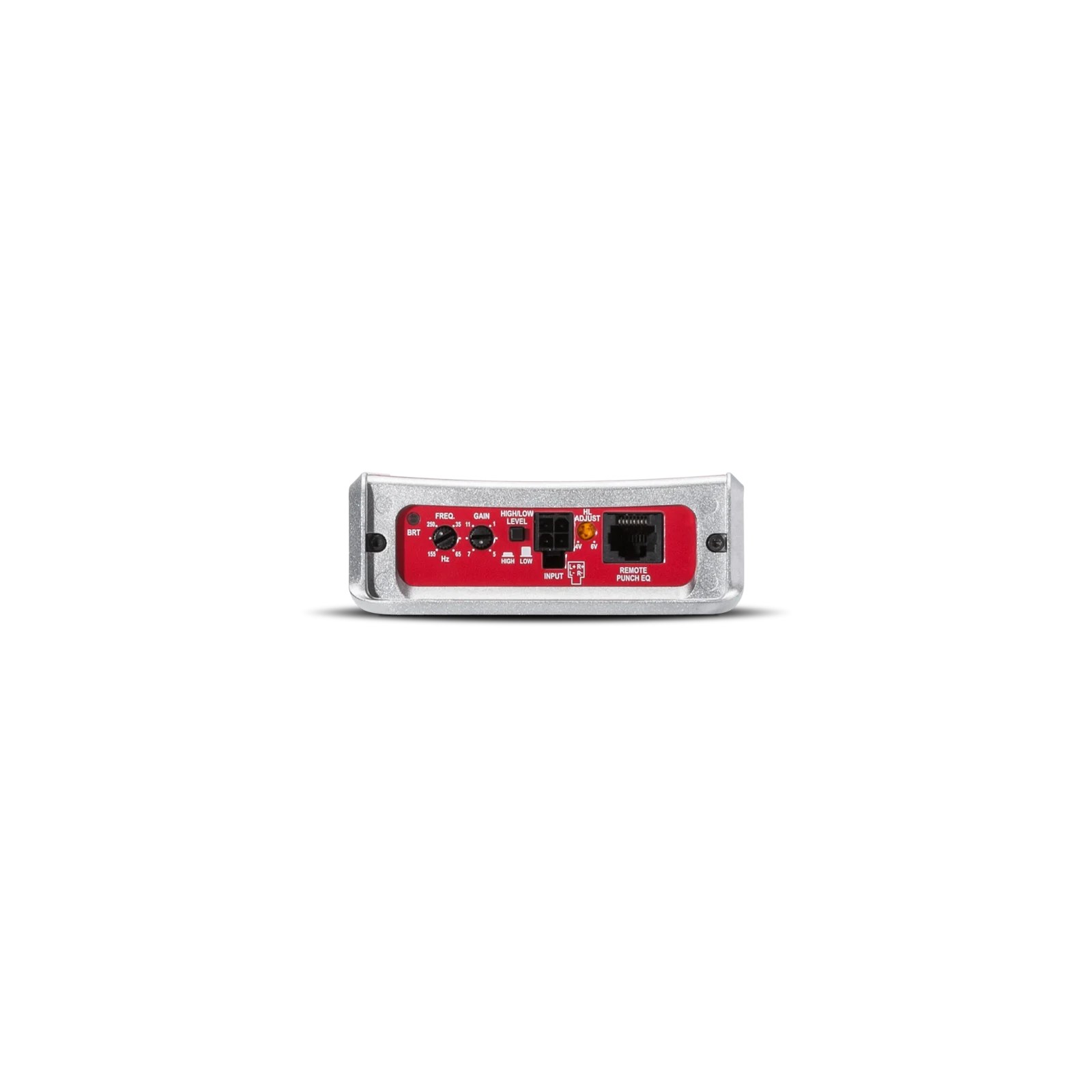

- Signal Input
- High/Low Input Switch High/Low Level Input: 4-Pin harness Hi-Level Sensitivity: Variable DC offset sensitivity
- Tone Controls
- External via Optional Punch EQ
- Crossover Controls
- Low-Pass: 35Hz - 250Hz @ 12dB/Octave Butterworth
- Remote Controls
- Optional PEQ provides 0dB to +18dB @ 45Hz
