Rockford FosgatePreview

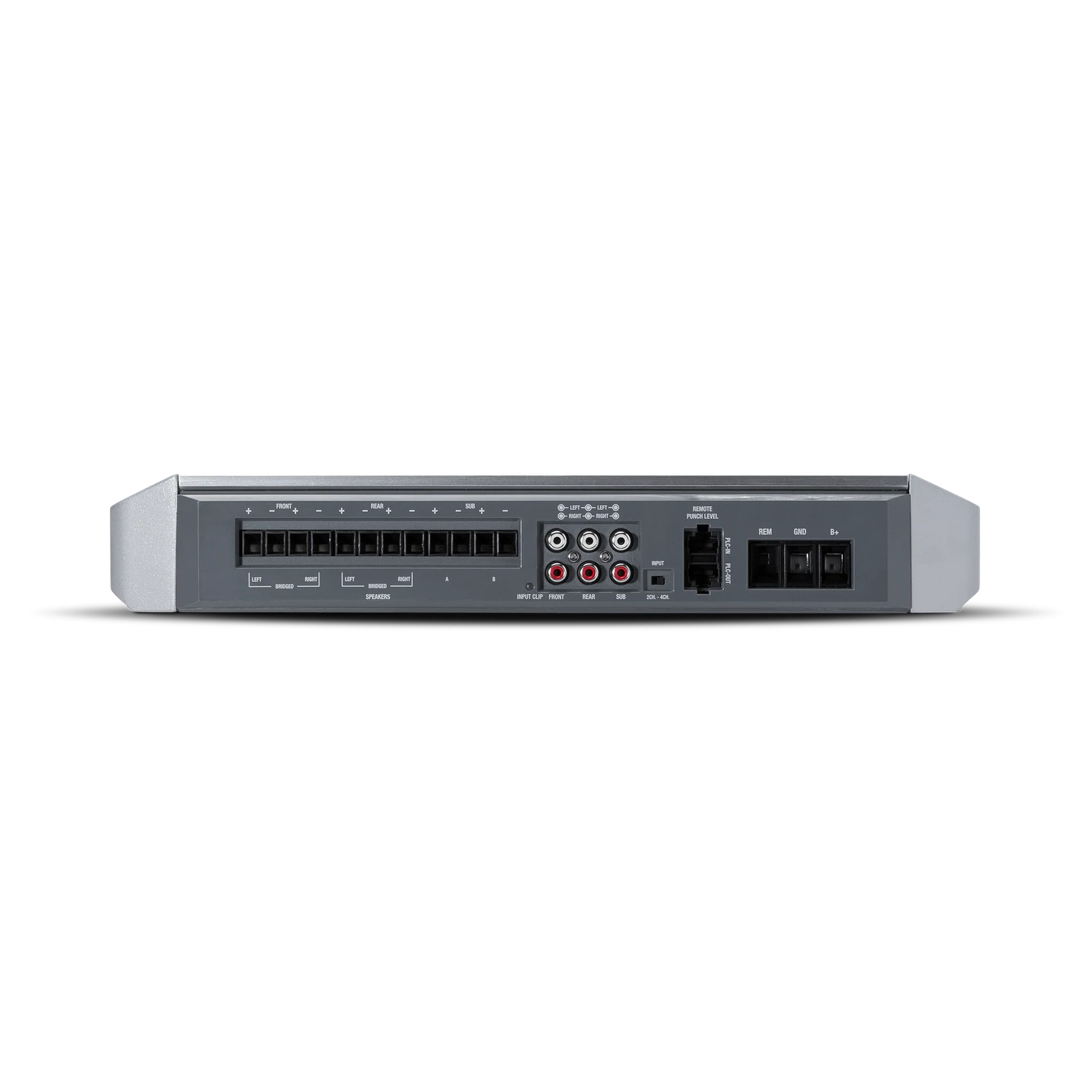

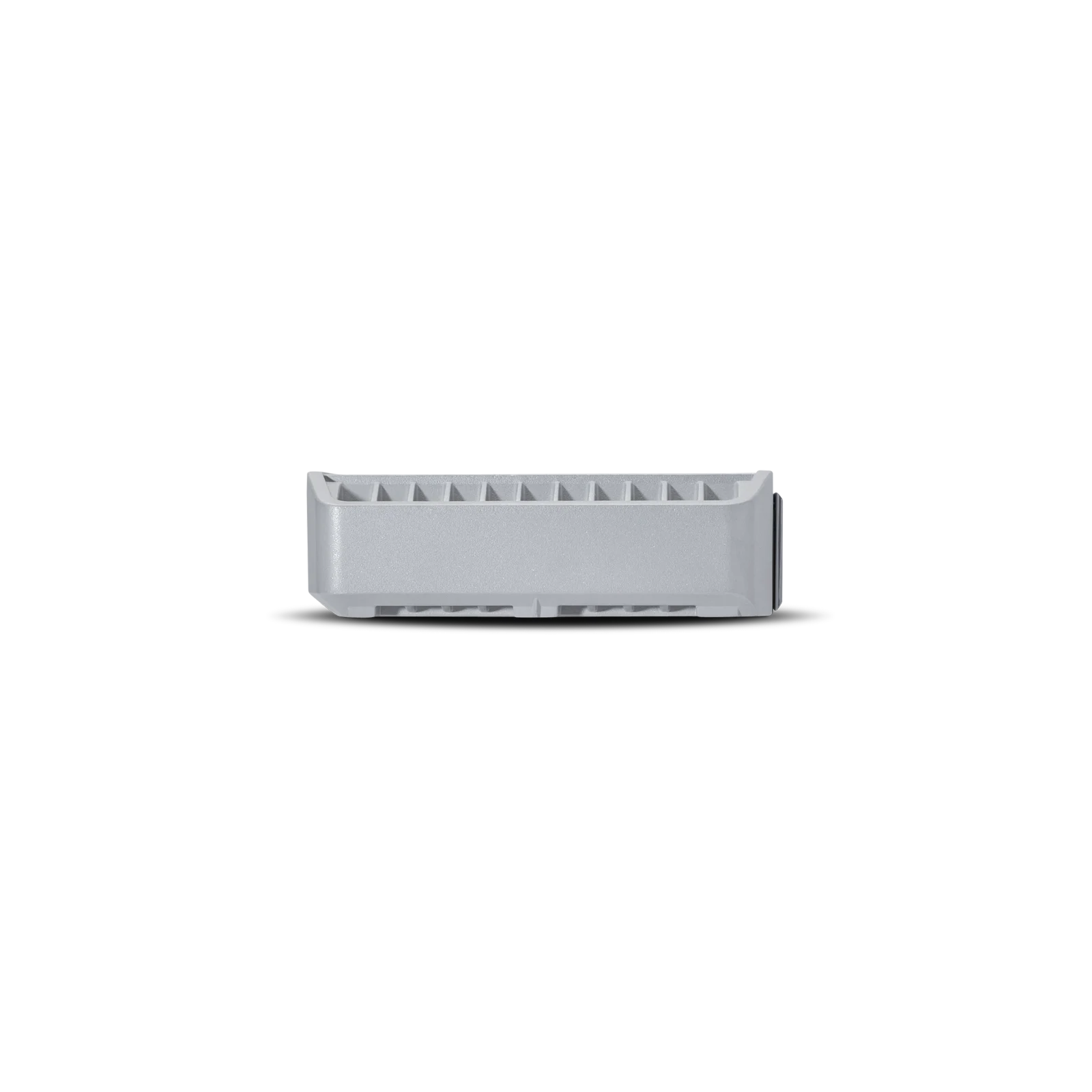

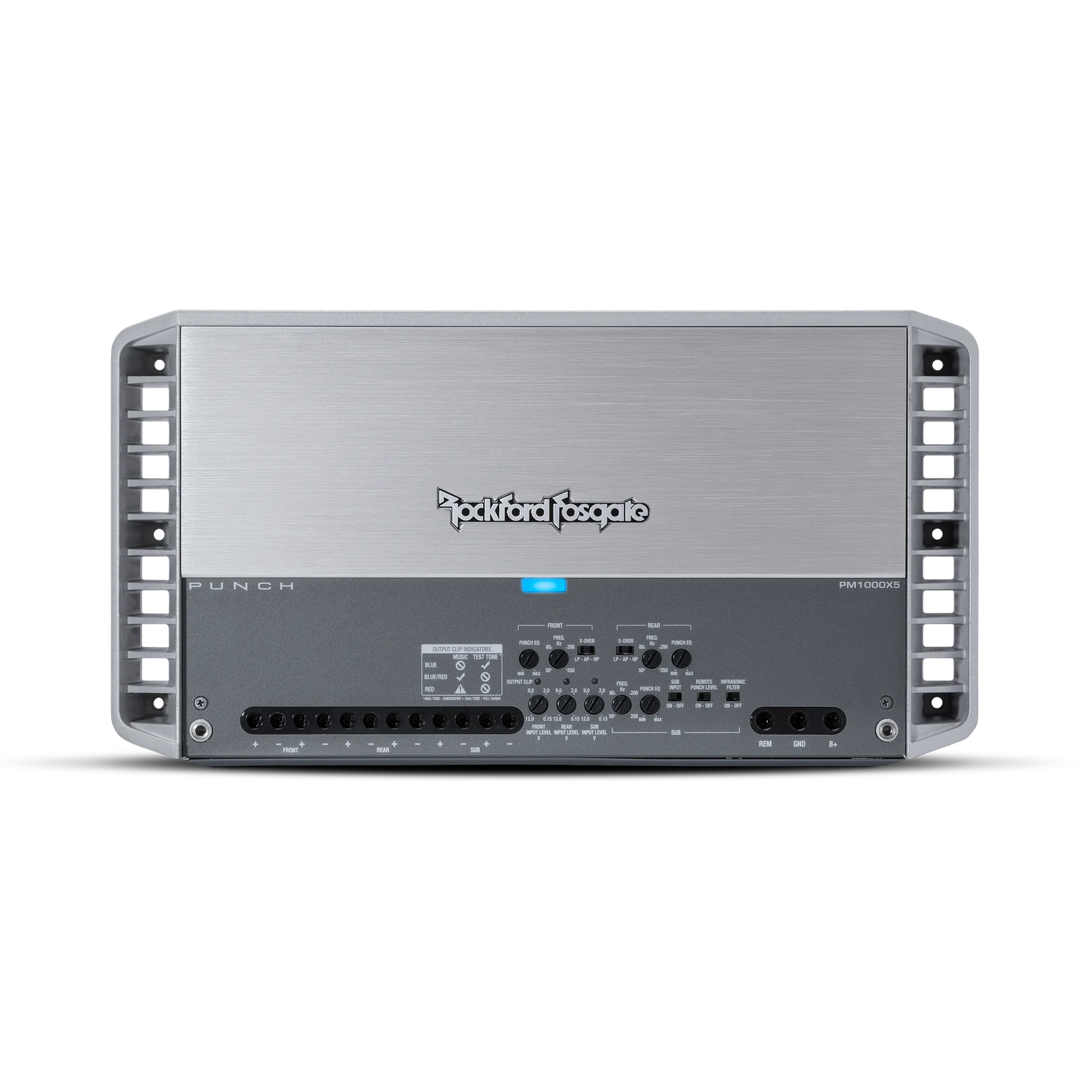

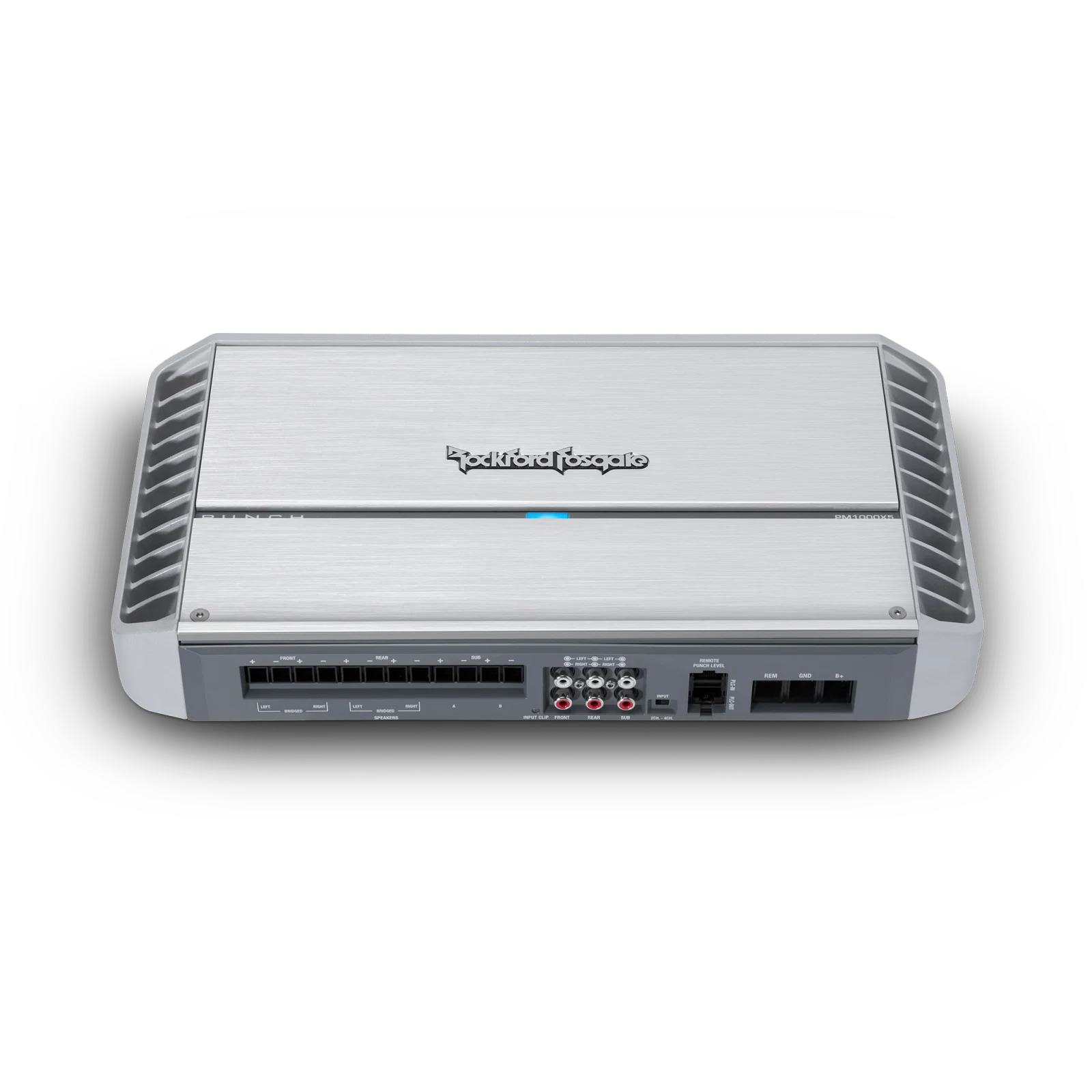

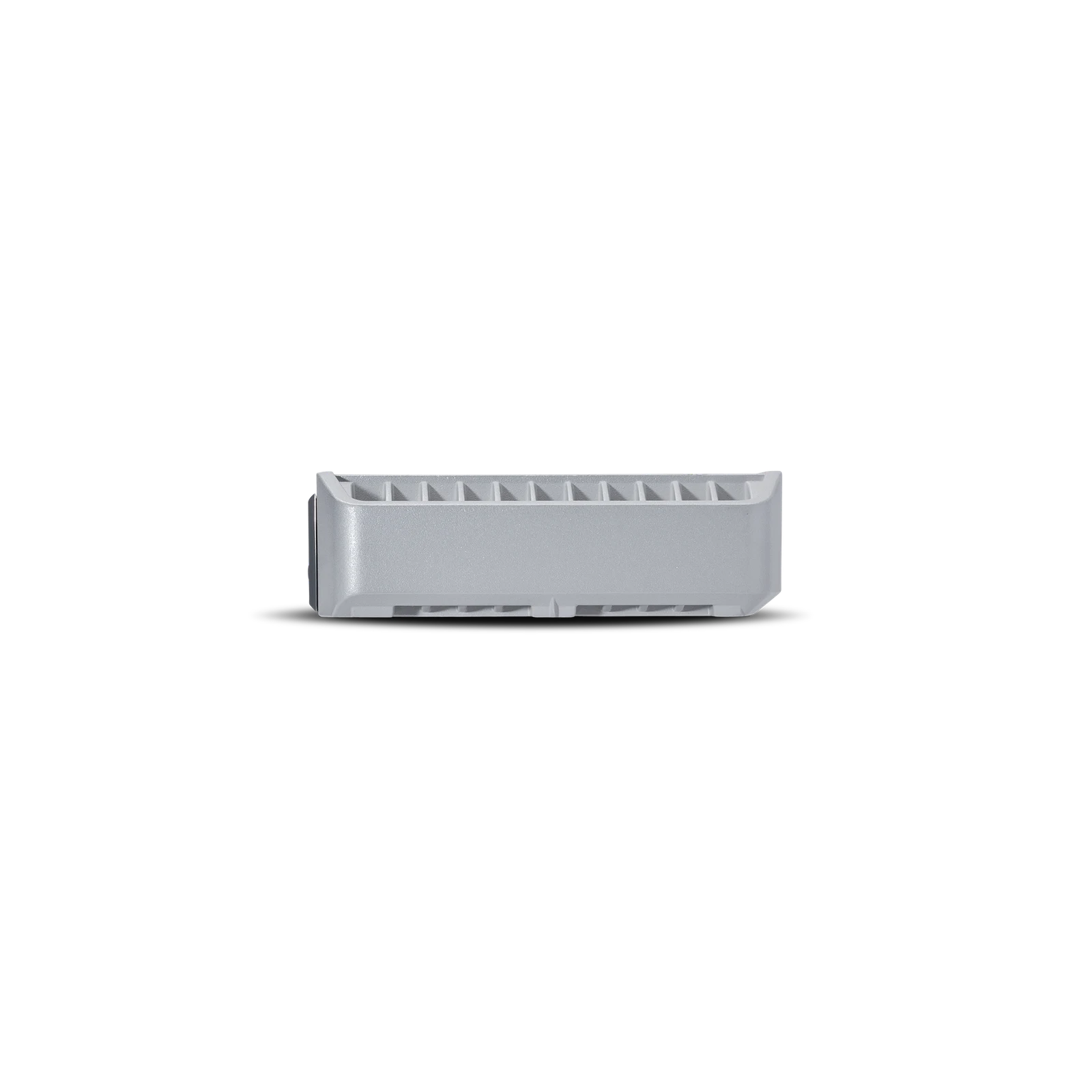

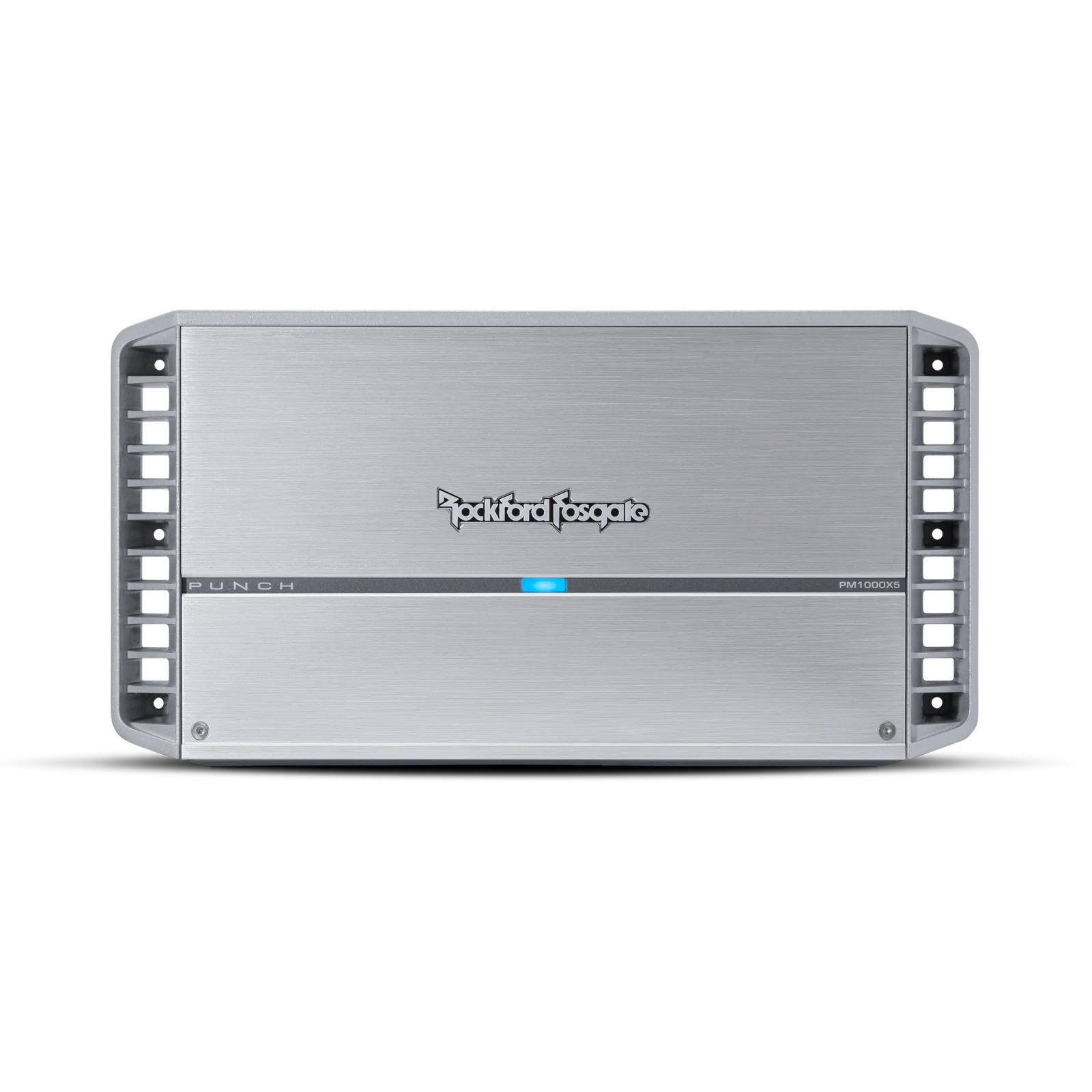

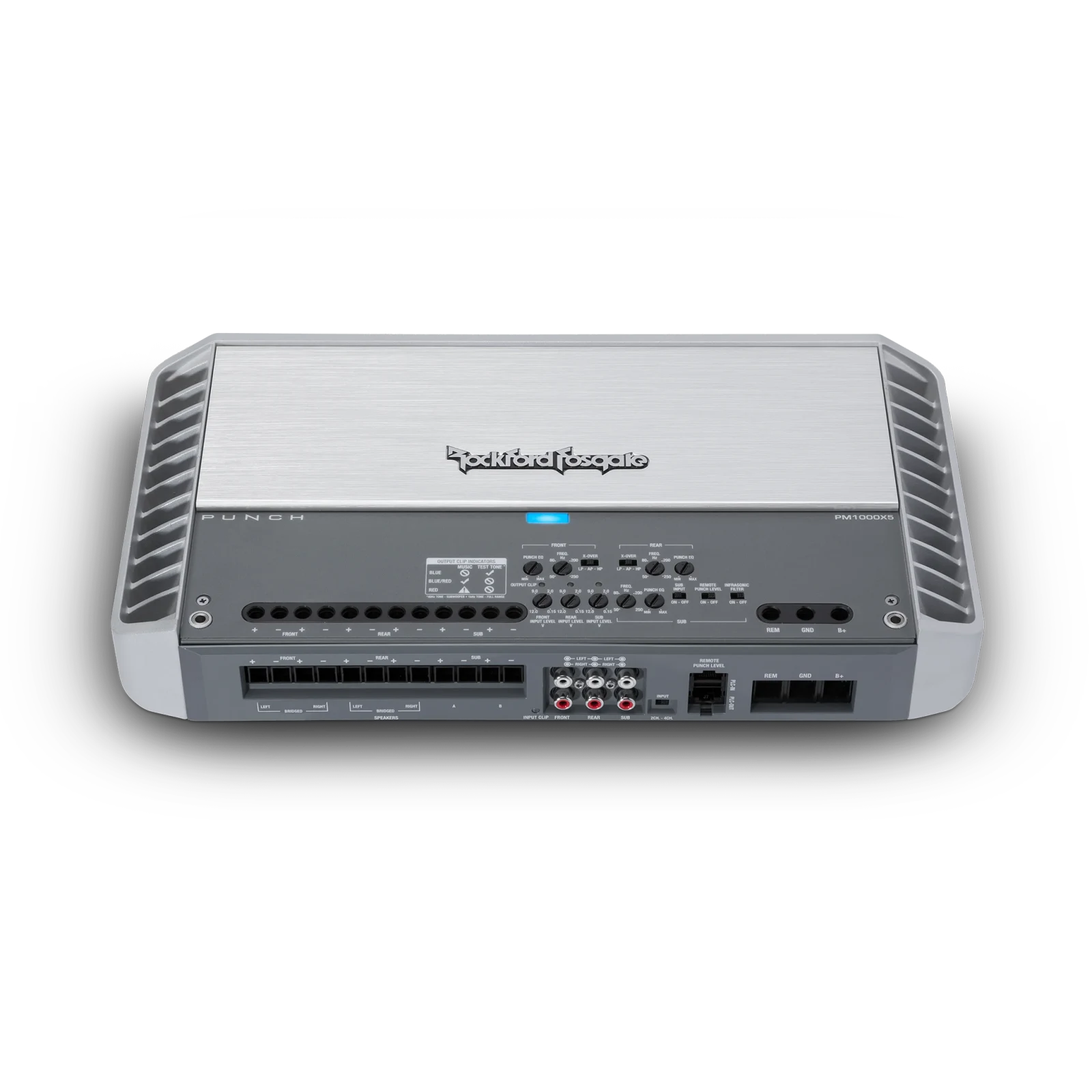

Punch Marine 1,000 Watt Class-bd 5-Channel Amplifier
Coming soon
Punch Marine 1,000 Watt Class-bd 5-Channel Amplifier. Made for marine audio setups. At a glance: Front/Rear: 20Hz - 20kHz +/-3dB Sub: 20Hz - 500Hz +/-3dB.
Get notified when it is available
We will email you once when this item is in stock.
Delivery across Canada
We will ship to every province and territory.
Returns
Full return terms will be posted at launch. See delivery & returns.
Manufacturer warranty
Brand-new, genuine product covered by the manufacturer warranty.
Specifications
- Brand
- Rockford Fosgate
- Number of Channels
- 5
- Total Power (Sum of Rated Power)
- 1000 Watts
- Rated Power (RMS Continuous Power)
- 75 Watts x 4 + 150 Watts x 1 @ 4-Ohm 125 Watts x 4 + 300 Watts x 1 @ 2-Ohm N/A + 500 Watts @ 1-Ohm
- Dynamic Power (PVC/PowerCube®)
- 115 Watts x 4 + 299 Watts x 1 @ 4-Ohms 0° Res 190 Watts x 4 + 540 Watts x 1 @ 2-Ohms 0° Res N/A + 863 Watts x 1 @ 1-Ohm 0° Res
- Bridgeable
- Yes (front/rear channels)
- Frequency Response
- Front/Rear: 20Hz - 20kHz +/-3dB Sub: 20Hz - 500Hz +/-3dB
- Input Sensitivity
- 150 mV - 12 V
- Circuit Topology Class
- Class A/B + Class BD (Sub)
- Efficiency (average)
- Front/Rear: 66% @ 4-Ohm Sub Channel: 80% @ 4-Ohm
- Total Harmonic Distortion (THD+Noise)
- <1.0%
- Signal Input
- Input Switch: Hi/Low level input Input Switch: 2/4 channel input Hi/Low Level: 3 RCA Pair Sub: front/sub input switch
- Tone Controls
- Sub: 0dB to +18dB @ 45Hz
- Visual Indicators
- Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD
